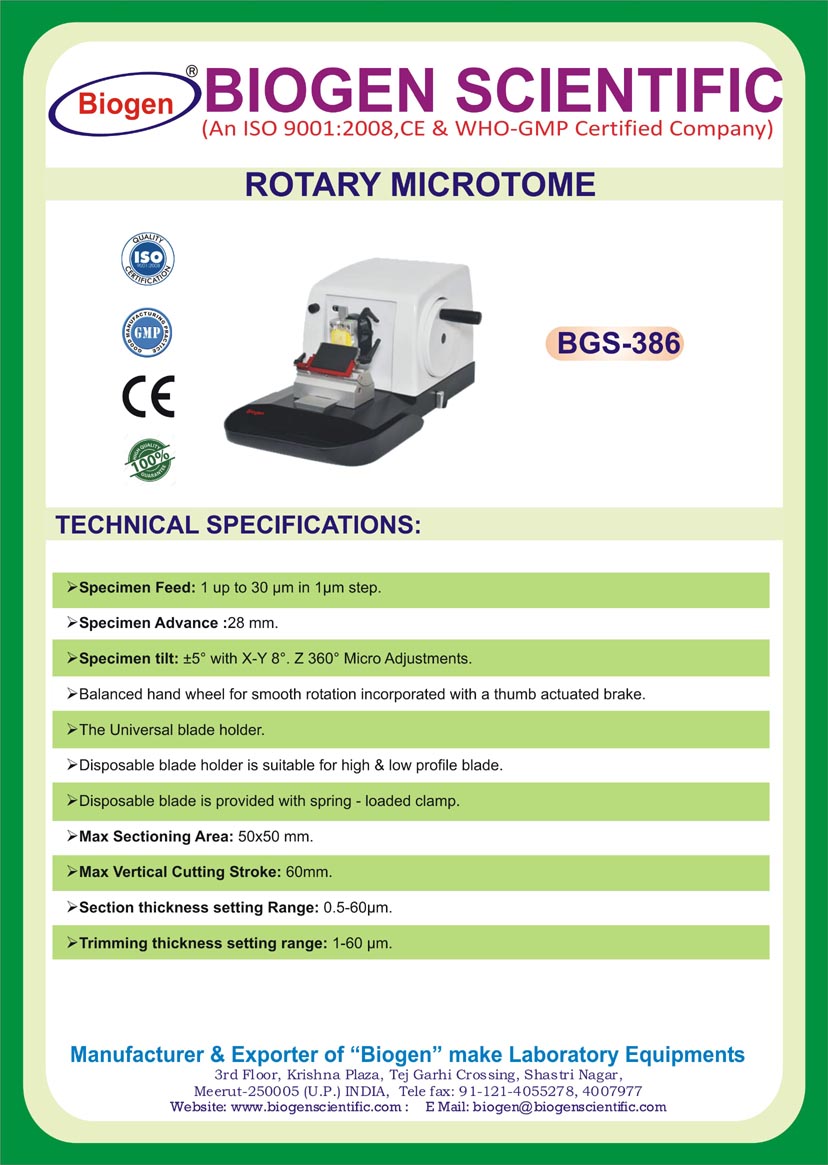

Technical Specification
Section thickness setting Range: 0.5-60?m. |
Section thickness setting Range: 0.5-60?m. |
Specimen Feed: 1 up to 30 ?m in 1?m step. |
Specimen Advance: 28 mm. |
Specimen tilt: ±5° with X-Y 8°. Z 360° Micro Adjustments. |
Specimen tilt: ±5° with X-Y 8°. Z 360° Micro Adjustments. |
The Universal blade holder. |
Disposable blade holder is suitable for high & low profile blade. |
Disposable blade is provided with spring - loaded clamp. |
Max Sectioning Area: 50x50 mm. |
Max Vertical Cutting Stroke: 60mm. |
