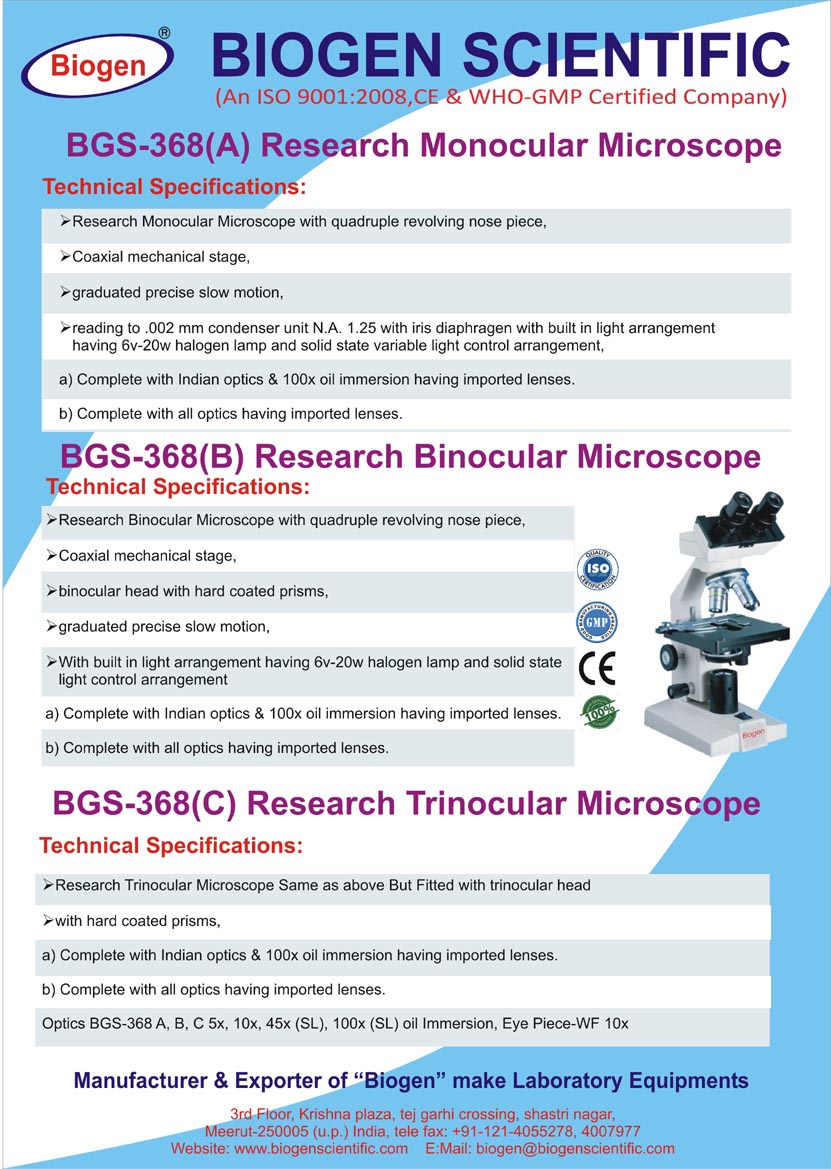

Technical Specification
| Research Monocular Microscope with quadruple revolving nose piece, Coaxial mechanical stage, graduated precise slow motion, |
| Reading to .002 mm condenser unit N.A. 1.25 with iris diaphragen with built in light arrangement having 6v-20w halogen lamp and solid state variable light control arrangement, |
| a) Complete with Indian optics & 100x oil immersion having imported lenses. |
| b) Complete with all optics having imported lenses. |
| BGS-368 (B) Research Binocular Microscope |
| Research Binocular Microscope with quadruple revolving nose piece, |
| Coaxial mechanical stage, binocular head with hard coated prisms, graduated precise slow motion, with built in light arrangement having 6v-20w halogen lamp and solid state light control arrangement |
| a) Complete with Indian optics & 100x oil immersion having imported lenses. |
| b) Complete with all optics having imported lenses. |
| BGS-368 (C) Research Trinocular Microscope |
| Research Trinocular Microscope Same as above But Fitted with trinocular head with hard coated prisms, |
| a) Complete with Indian optics & 100x oil immersion having imported lenses. b) Complete with all optics having imported lenses. |
| Optics BGS-368 A, B, C 5x, 10x, 45x (SL), 100x (SL) oil Immersion, Eye Piece-WF 10x |
