BIO REACTOR (CAT. NO. BGS-105 (B)

Technical Specification

System provided with Micro controller based large 5.7 inches colored TFT/HMI, Touch Screen display and control for all the parameters. Data can be transferred and saved to PC in excel format with the help of software and serial communication port/USB port for data logging.
Fermentor Vessel: SS316L Top Flange with all Ports for Temp./pH/DO/Acid/ Base/ Inoculums, Autoclavable Bioreactor, borosilicate glass vessel with round bottom having 1 liter to 10 Liter working and condenser with 0.22 micron PTFE filter for out gas and air filtration. Water inlet and out let for circulation of cold water to maintain the reaction volume.
Control Panel: Micro controller based Controller having controls for fermentation parameters i.e. RPM/ Temp. / pH and consisting of Anti Foam Sensor.230V ± 10% V, 50 Hz, AC.
Motor: Top Driven Magnetically coupled DC motor better than direct coupled mechanical seal.
Fermentation Kit : Fermentation kit having Air pump, Rotameter 0-5LPM variable with online PTFE 0.22 micron Hydrophobic Filter, Tubing/ Clamps/ Filters/Acid Base Reagent Bottles etc.
Peristaltic pumps: 2 to 4 Nos speed peristaltic pumps for Acid/Base dosing, one each for Antifoam addition and Nutrients addition.
pH Controller and Probe: Online gel filled Sterilizable at 121°C at 15 psi pH probe with transmitter display of pH in the panel with auto pH control (2-14, Control range:0.1),via PID links to pumps or gases and adjustable dead band.
Sparger Type: Ring type air sparger with fine pin holes provided towards bottom of the vessel. Agitation: Digital RPM indication with variable speed from 30 to 500 RPM and control accuracy of ± 5RPM.
Impellers: Ruston turbine type impellers, 4 blades two impellers, removable type of SS316. Four baffles in built SS316 removable type.
Temperature control: Digital Temperature Indicator cum controller with Temperature Range: 5- 100°C, Temperature Control Accuracy ±0.1 ºC. with PID Control (for Cooling chiller is required).
Antifoam Sensor/ Foam Level Controller: SS 316 Conduction probes for automatic Level Foam control. Time Proportionate Control . Provided with one number peristaltic pump with antifoam sensor and cable .
ACCESSORIES: Online D.O. probe, Touch Screen Based Controller, SCADA Software, Chiller-Circulator, Air Compressor
Vessel Capacity: 1 ltr Glass, 2 ltr Glass, 3 ltr Glass, 5 ltr Glass, 7 ltr Glass, 12ltr Glass

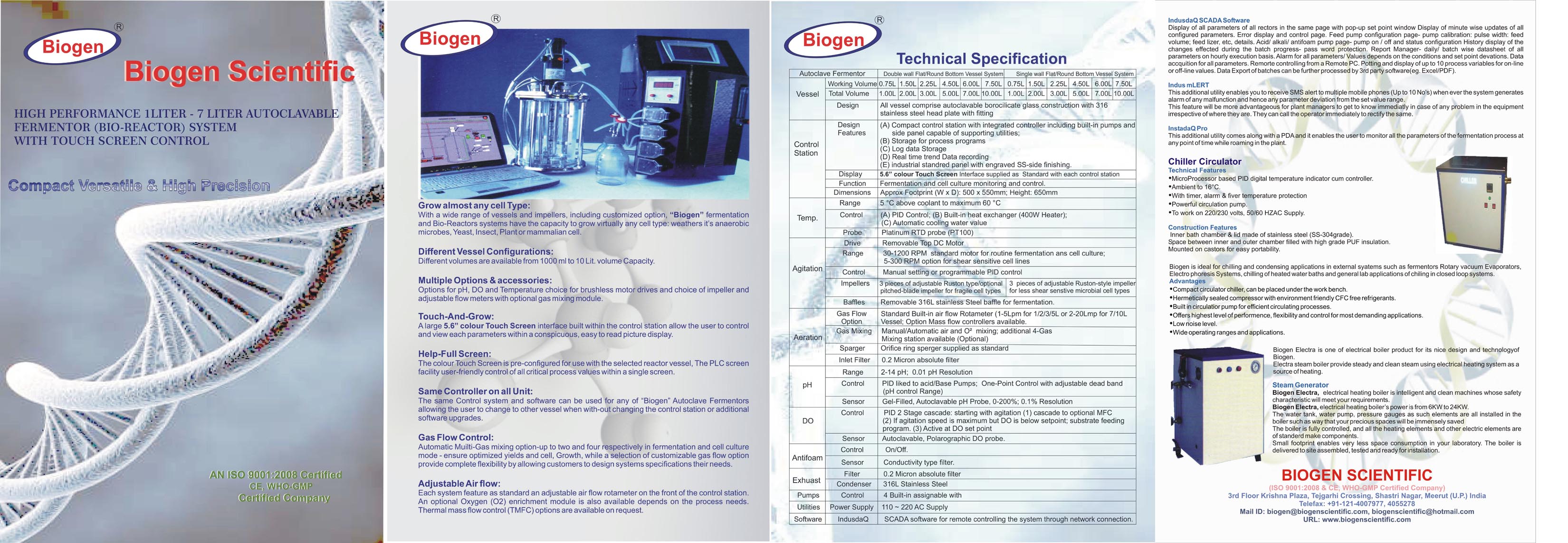

 Download Broucher
