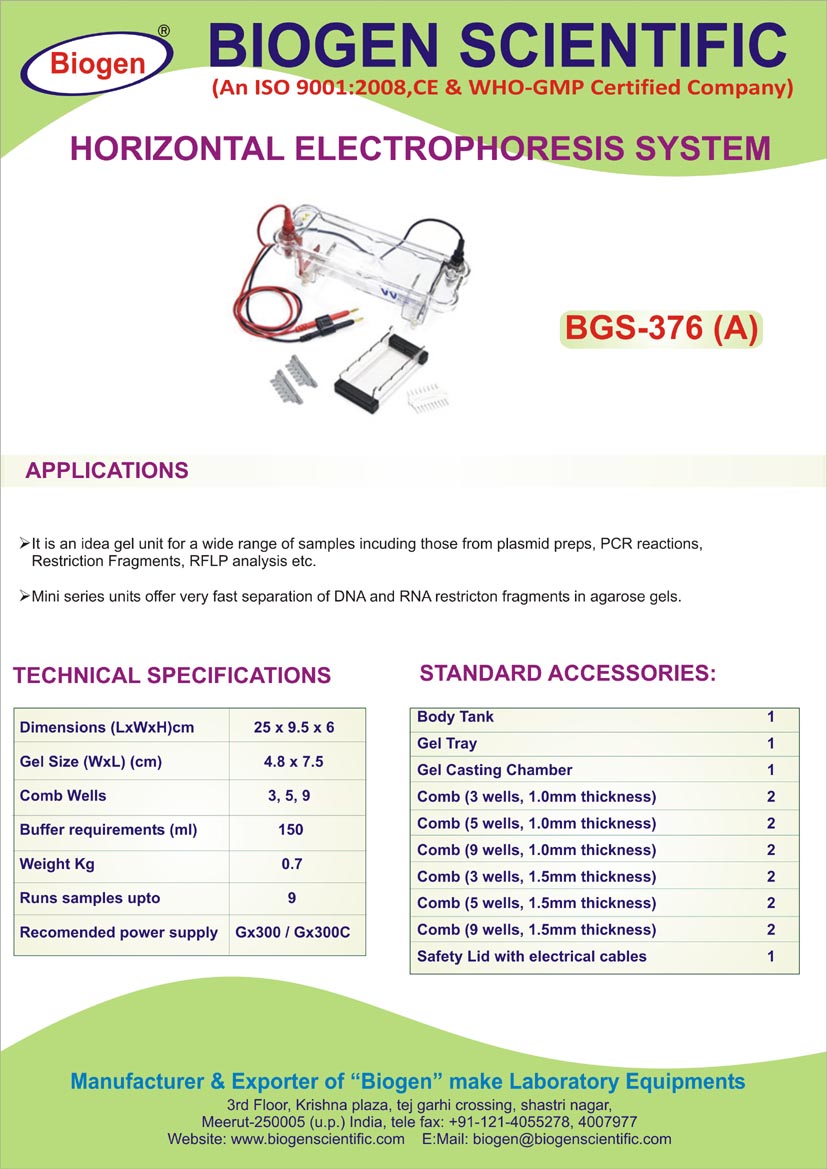

Technical Specification
| It is an idea gel unit for a wide range of samples incuding those from plasmid preps, PCR reactions, Restriction Fragments, RFLP analysis etc. |
| Mini series units offer very fast separation of DNA and RNA restricton fragments in agarose gels. |
| Dimensions (LxWxH)cm: 25 x 9.5 x 6 |
| Gel Size (WxL) (cm): 4.8 x 7.5 |
| Comb Wells: 3, 5, 9 |
| Buffer requirements (ml): 150 |
| Weight Kg: 0.7 |
| Runs samples upto: 9 |
| Recommended power supply: Gx300 / Gx300C |
| Body Tank: 1, Gel Tray: 1, Gel Casting Chamber: 1 |
| Comb (3 wells, 1.0mm thickness): 2, Comb (5 wells, 1.0mm thickness): 2, Comb (9 wells, 1.0mm thickness): 2 |
| Comb (3 wells, 1.5mm thickness): 2, Comb (5 wells, 1.5mm thickness): 2, Comb (9 wells, 1.5mm thickness): 2 |
| Safety Lid with electrical cables: 1 |
