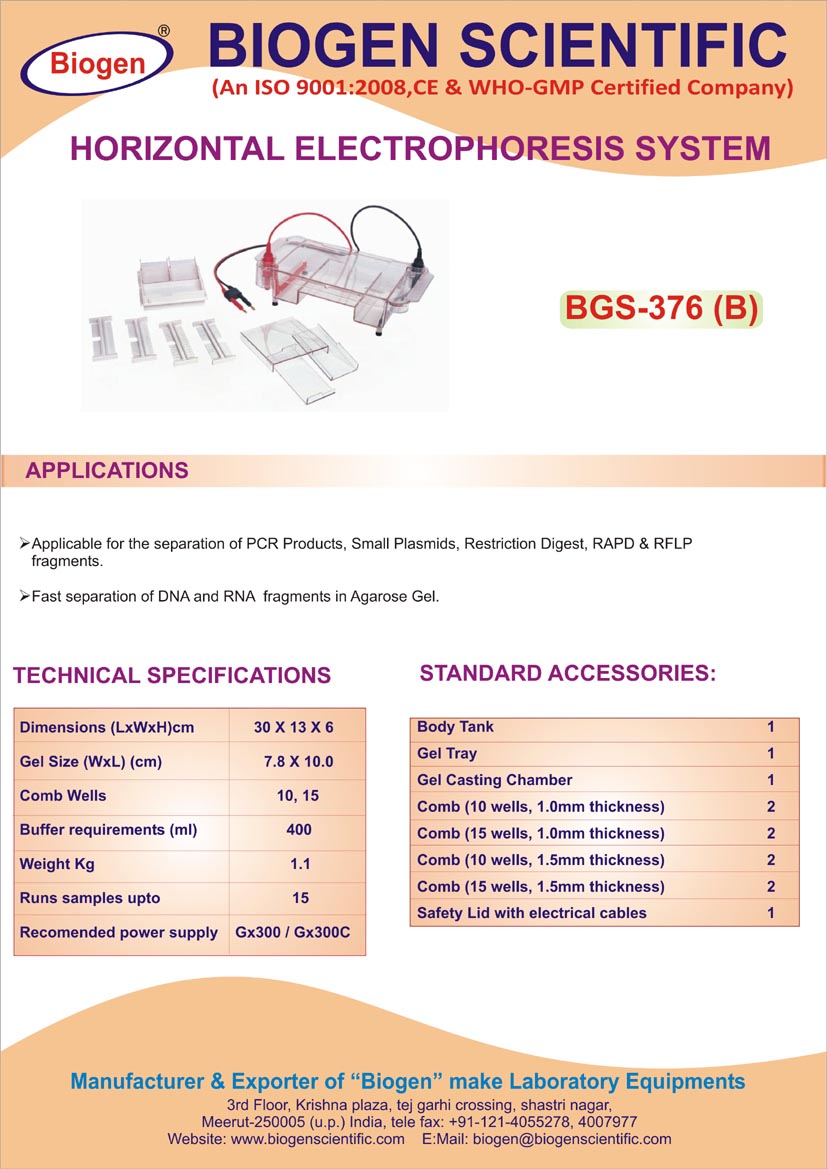

Technical Specification
| Applicable for the separation of PCR Products, Small Plasmids, Restriction Digest, RAPD & RFLP fragments. |
| Fast separation of DNA and RNA fragments in Agarose Gel. |
| Dimensions (LxWxH)cm: 30 X 13 X 6 |
| Gel Size (WxL) (cm): 7.8 X 10.0 |
| Comb Wells: 10, 15 |
| Buffer requirements (ml): 400 |
| Weight Kg: 1.1 |
| Runs samples upto: 15 |
| Recomended power supply: Gx300 / Gx300C |
| Body Tank: 1 Gel Tray: 1 Gel Casting Chamber: 1 |
| Comb (10 wells, 1.0mm thickness): 2 Comb (15 wells, 1.0mm thickness): 2 |
| Comb (10 wells, 1.5mm thickness): 2 Comb (15 wells, 1.5mm thickness): 2 |
| Safety Lid with electrical cables: 1 |
