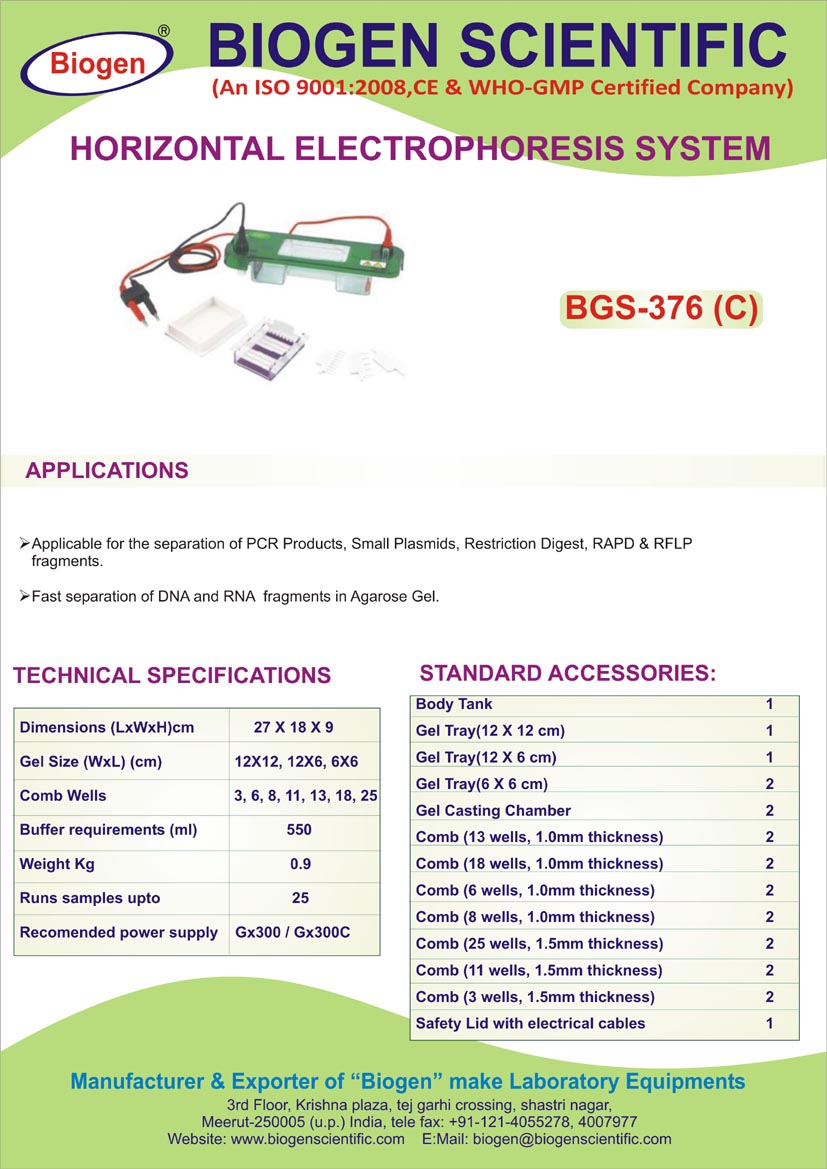

HORIZONTAL ELECTROPHORESIS SYSTEM (CAT. NO. BGS-376 (C))

Technical Specification

Applicable for the separation of PCR Products, Small Plasmids, Restriction Digest, RAPD & RFLP fragments.
Fast separation of DNA and RNA fragments in Agarose Gel.
Dimensions (LxWxH)cm: 27 X 18 X 9
Gel Size (WxL) (cm): 12X12, 12X6, 6X6
Comb Wells: 3, 6, 8, 11, 13, 18, 25
Buffer requirements (ml): 550
Weight Kg: 0.9
Runs samples upto: 25
Recomended power supply: Gx300 / Gx300C
Body Tank: 1, Gel Tray(12 X 12 cm): 1, Gel Tray(12 X 6 cm): 1, Gel Tray(6 X 6 cm): 2, Gel Casting Chamber: 2
Comb (13 wells, 1.0mm thickness): 2, Comb (18 wells, 1.0mm thickness): 2, Comb (6 wells, 1.0mm thickness): 2
Comb (8 wells, 1.0mm thickness):2, Comb (25 wells, 1.5mm thickness):2, Comb (11 wells, 1.5mm thickness): 2, Comb (3 wells, 1.5mm thickness): 2
Safety Lid with electrical cables: 1
