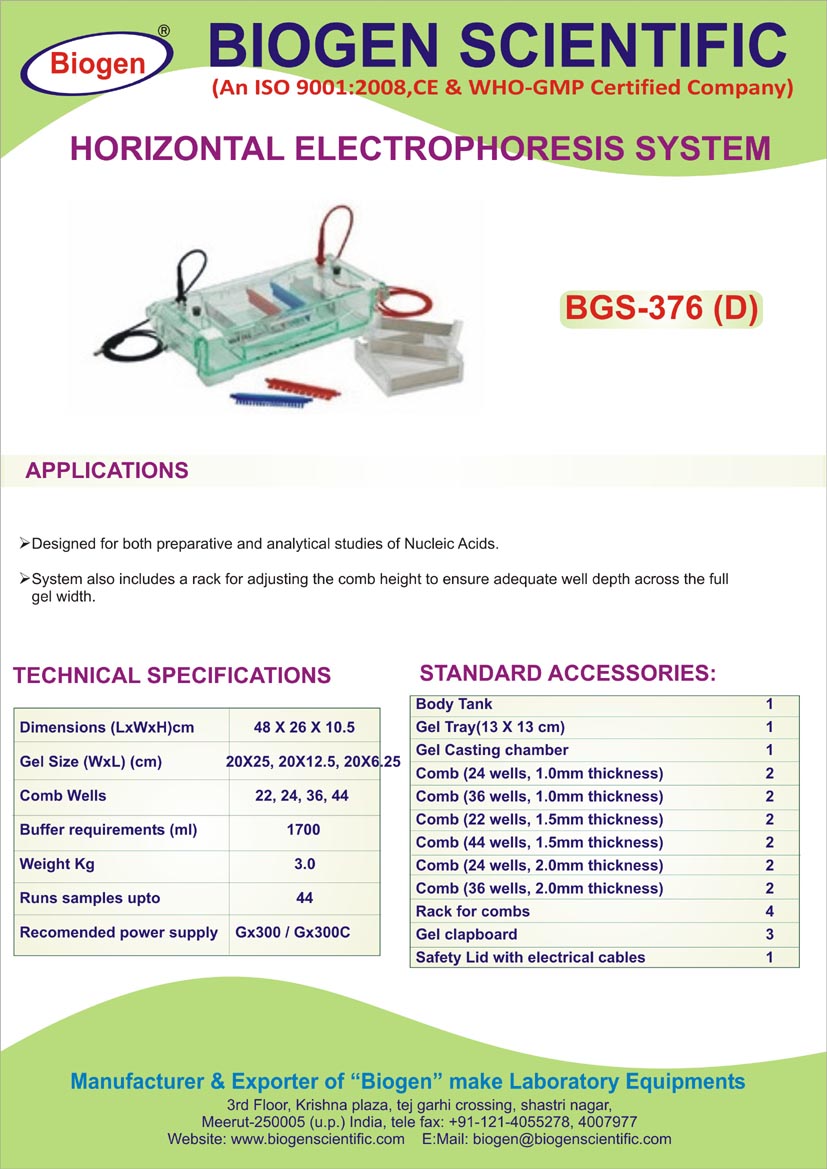

Technical Specification
| Designed for both preparative and analytical studies of Nucleic Acids. |
| System also includes a rack for adjusting the comb height to ensure adequate well depth across the full gel width. |
| Dimensions (LxWxH)cm: 48 X 26 X 10.5 |
| Gel Size (WxL) (cm): 20X25, 20X12.5, 20X6.25 |
| Comb Wells: 22, 24, 36, 44 |
| Buffer requirements (ml): 1700 |
| Weight Kg: 3.0 |
| Runs samples upto: 44 |
| Recomended power supply: Gx300 / Gx300C |
| Body Tank: 1, Gel Tray(13 X 13 cm): 1, Gel Casting chamber: 1 |
| Comb (24 wells, 1.0mm thickness): 2, Comb (36 wells, 1.0mm thickness): 2, Comb (22 wells, 1.5mm thickness): 2 |
| Comb (44 wells, 1.5mm thickness): 2, Comb (24 wells, 2.0mm thickness): 2, Comb (36 wells, 2.0mm thickness): 2 |
| Rack for combs: 4, Gel clapboard: 3, Safety Lid with electrical cables: 1 |
