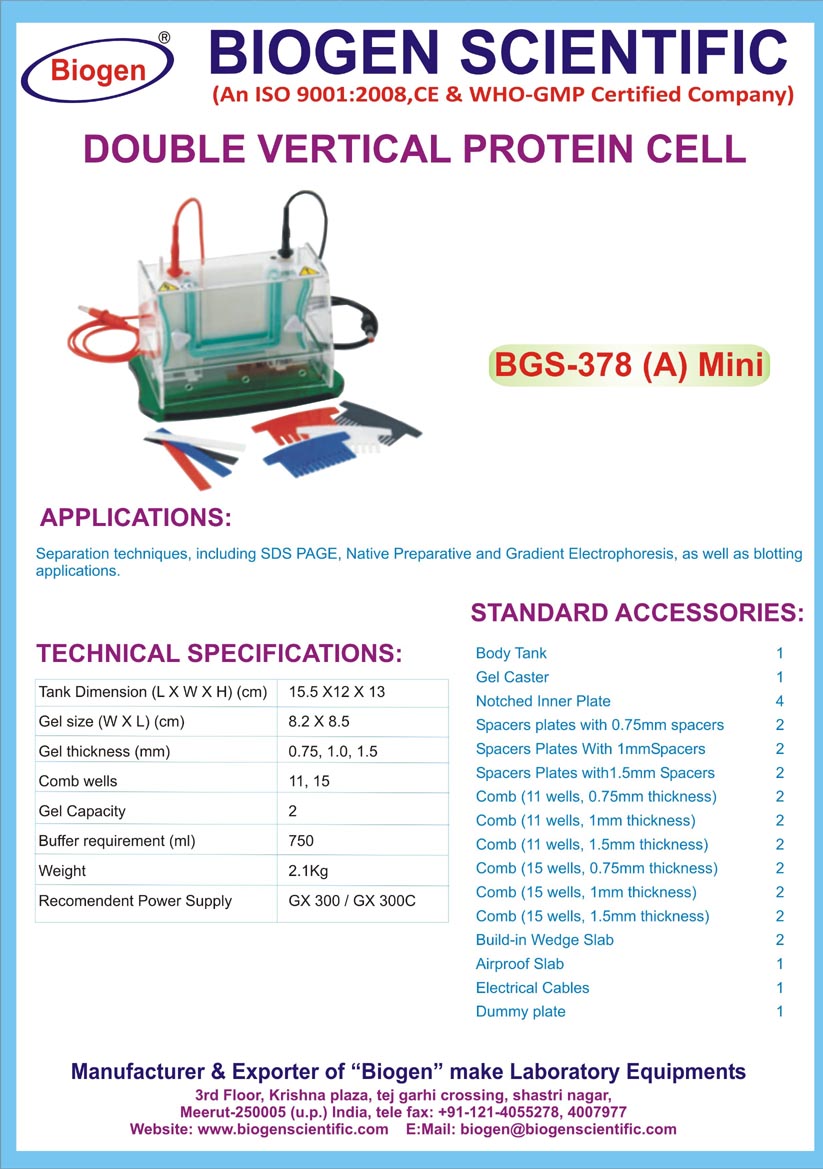

Technical Specification
| Separation techniques, including SDS PAGE, Native Preparative and Gradient Electrophoresis, as well as blotting applications. |
| Tank Dimension (L X W X H) (cm): 15.5 X12 X 13 |
| Gel size (W X L) (cm): 8.2 X 8.5 |
| Gel thickness (mm): 0.75, 1.0, 1.5 |
| Comb wells: 11, 15 |
| Gel Capacity: 2 |
| Buffer requirement (ml): 750 |
| Weight: 2.1Kg |
| Recommended Power Supply: GX 300 / GX 300C |
| Body Tank: 1, Gel Caster: 1 |
| Notched Inner Plate: 4, Spacers plates with 0.75mm spacers: 2, Spacers Plates With 1mmSpacers: 2, Spacers Plates with1.5mm Spacers: 2 |
| Comb (11 wells, 0.75mm thickness): 2, Comb (11 wells, 1mm thickness): 2, Comb (11 wells, 1.5mm thickness): 2, Comb (15 wells, 0.75mm thickness): 2, Comb (15 wells, 1mm thickness): 2, Comb (15 wells, 1.5mm thickness): 2 |
| Build-in Wedge Slab: 2 Airproof Slab: 1 Electrical Cables: 1 Dummy plate: 1 |
