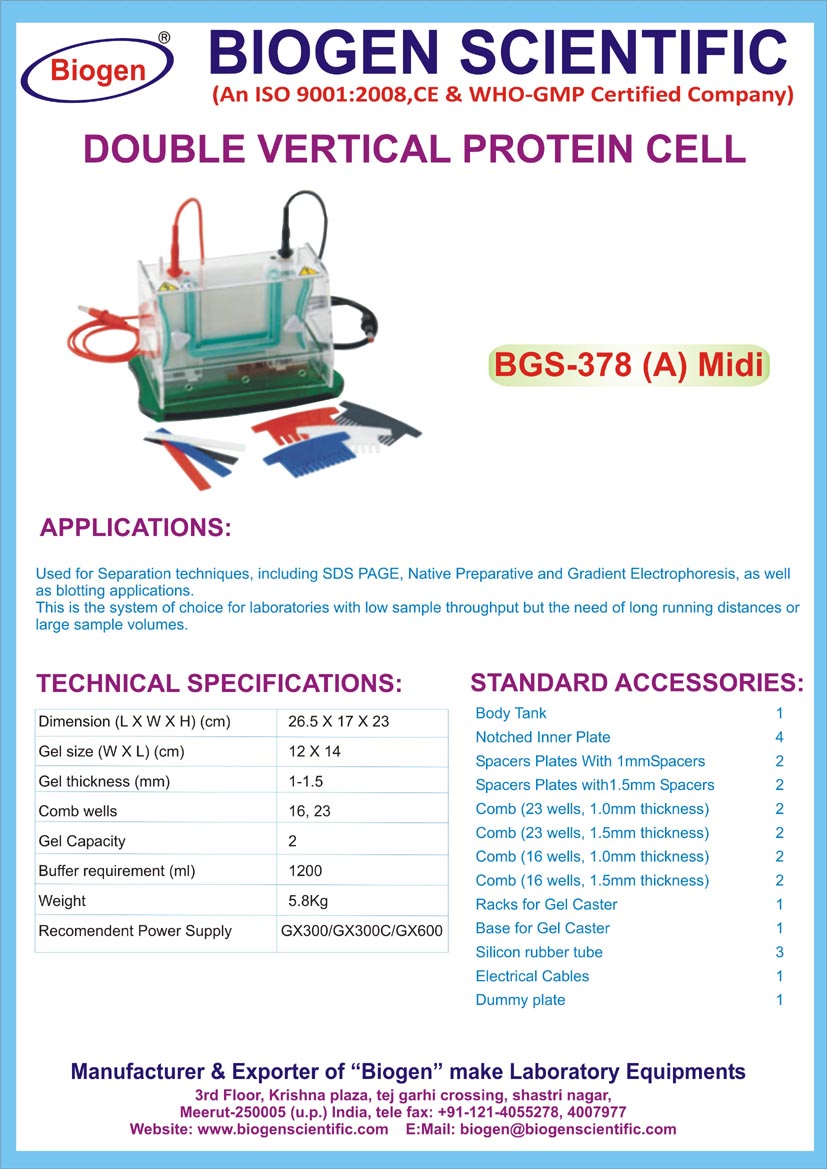

DOUBLE VERTICAL PROTEIN CELL (CAT.NO. BGS-378(A) Midi)

Technical Specification

Used for Separation techniques, including SDS PAGE, Native Preparative and Gradient Electrophoresis, as well as blotting applications.
This is the system of choice for laboratories with low sample throughput but the need of long running distances or large sample volumes.
Dimension (L X W X H) (cm): 26.5 X 17 X 23
Gel size (W X L) (cm): 12 X 14
Gel thickness (mm): 1-1.5
Comb wells: 16, 23
Gel Capacity: 2
Buffer requirement (ml): 1200
Weight: 5.8Kg
Recomendent Power Supply: GX300/GX300C/GX600
Body Tank: 1, Notched Inner Plate: 4, Spacers Plates With 1mmSpacers: 2, Spacers Plates with1.5mm Spacers: 2
Comb (23 wells, 1.0mm thickness): 2, Comb (23 wells, 1.5mm thickness): 2, Comb (16 wells, 1.0mm thickness): 2, Comb (16 wells, 1.5mm thickness): 2
Racks for Gel Caster:1, Base for Gel Caster: 1, Silicon rubber tube: 3, Electrical Cables: 1, Dummy plate: 1
