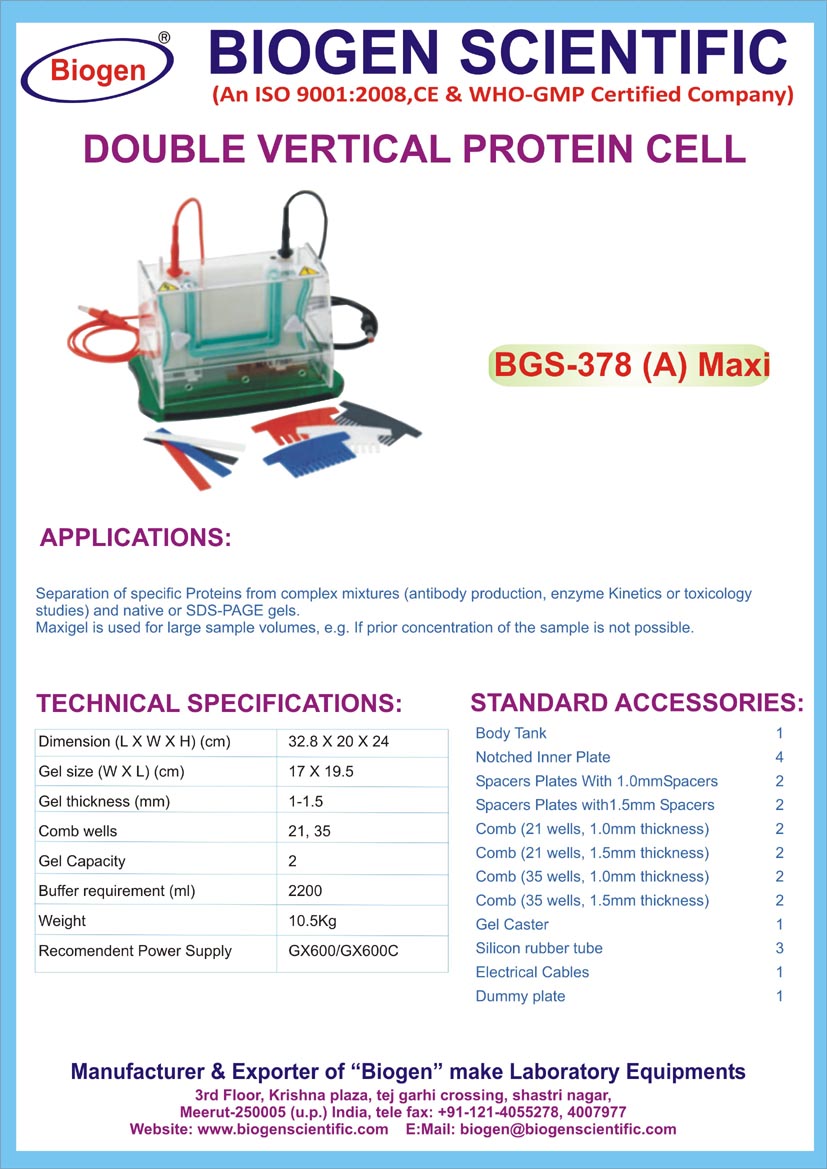

Technical Specification
| Separation of specific Proteins from complex mixtures (antibody production, enzyme Kinetics or toxicology studies) and native or SDS-PAGE gels. |
| Maxigel is used for large sample volumes, e.g. If prior concentration of the sample is not possible. |
| Dimension (L X W X H) (cm): 32.8 X 20 X 24 |
| Gel size (W X L) (cm): 17 X 19.5 |
| Gel thickness (mm): 1-1.5 |
| Comb wells: 21, 35 |
| Gel Capacity: 2 |
| Buffer requirement (ml): 2200 |
| Weight: 10.5Kg |
| Recomendent Power Supply: GX600/GX600C |
| Body Tank: 1, Notched Inner Plate: 4, Spacers Plates With 1.0mmSpacers: 2, Spacers Plates with1.5mm Spacers: 2 |
| Comb (21 wells, 1.0mm thickness): 2, Comb (21 wells, 1.5mm thickness): 2, Comb (35 wells, 1.0mm thickness): 2, Comb (35 wells, 1.5mm thickness): 2 |
| Gel Caster: 1, Silicon rubber tube: 3, Electrical Cables: 1, Dummy plate: 1 |
