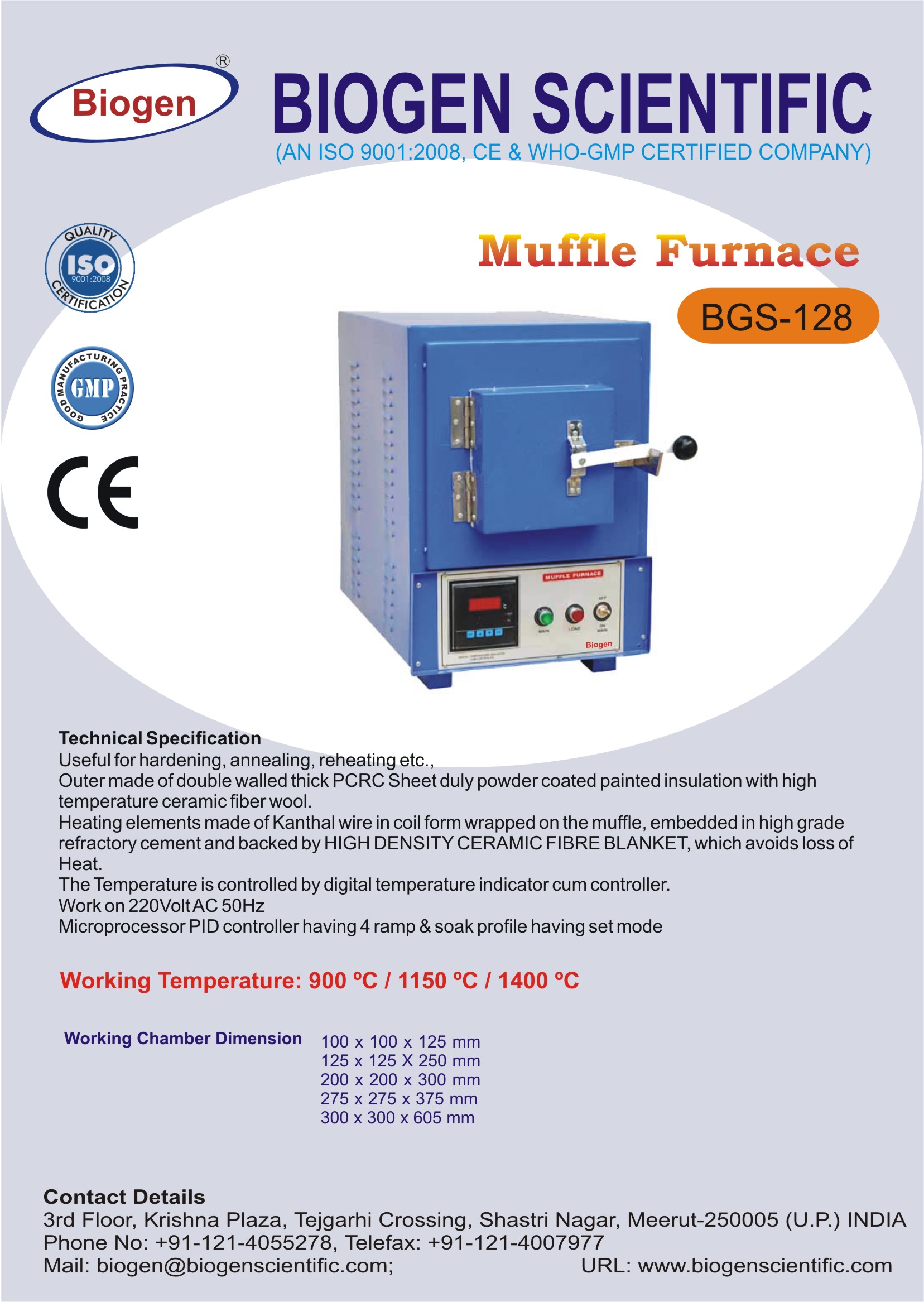

Technical Specification
| Useful for hardening, annealing, reheating etc., |
| Outer made of double walled thick PCRC Sheet duly powder coated painted insulation with high temperature ceramic fiber wool. |
| Heating elements made of Kanthal wire in coil form wrapped on the muffle, |
| Embedded in high grade refractory cement and backed by HIGH DENSITY CERAMIC FIBRE BLANKET, which avoids loss of heat. |
| The Temperature is controlled by digital temperature indicator cum controller. |
| Working Temperature 900 ºC/ 1100 ºC/ 1400 ºC. |
| Muffle Size (WxHxD): 100x100x225 mm |
| 125x125x250 mm |
| 150x150x300 mm |
| 200x200x300 mm |
| 275x275x375 mm |
| OPTIONAL ACCESSORIES: Profile Controller for 1100 ºC & 1450 ºC. |
