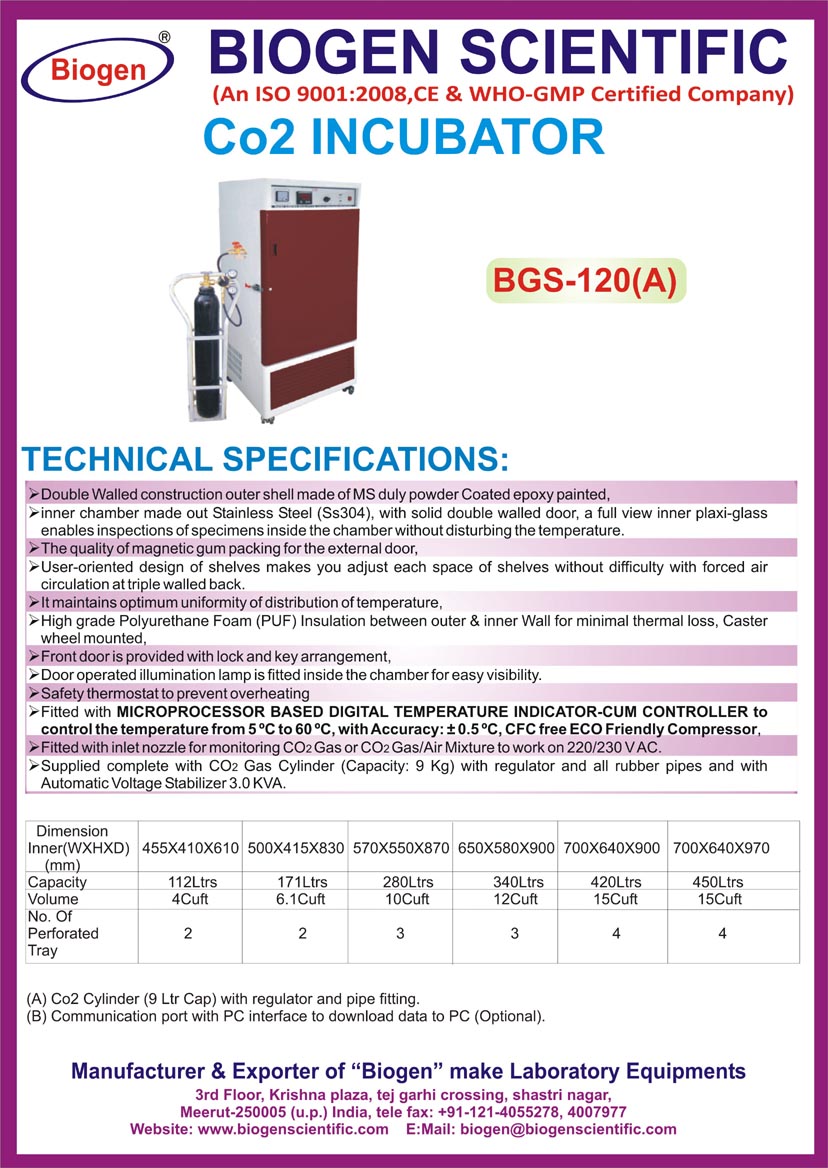

Technical Specification
Double Walled construction outer shell made of MS duly powder Coated epoxy painted, |
Inner chamber made out Stainless Steel (Ss304), with solid double walled door, a full view inner plaxi-glass enables inspections of specimens inside the chamber without disturbing the temperature. |
The quality of magnetic gum packing for the external door, |
User-oriented design of shelves makes you adjust each space of shelves without difficulty with forced air circulation at triple walled back. |
It maintains optimum uniformity of distribution of temperature, |
High grade Polyurethane Foam (PUF) Insulation between outer & inner Wall for minimal thermal loss, Caster wheel mounted, |
Front door is provided with lock and key arrangement, |
Door operated illumination lamp is fitted inside the chamber for easy visibility. |
Safety thermostat to prevent overheating |
Fitted with MICROPROCESSOR BASED DIGITAL TEMPERATURE INDICATOR-CUM CONTROLLER to control the temperature from 5 ºC to 60 ºC, with Accuracy: ± 0.5 ºC, CFC free ECO Friendly Compressor, |
Fitted with inlet nozzle for monitoring CO2 Gas or CO2 Gas/Air Mixture to work on 220/230 V AC. |
Supplied complete with CO2 Gas Cylinder (Capacity: 9 Kg) with regulator and all rubber pipes and with Automatic Voltage Stabilizer 3.0 KVA. |
(A) Co2 Cylinder (9 Ltr Cap) with regulator and pipe fitting. (B) Communication port with PC interface to download data to PC (Optional). |
