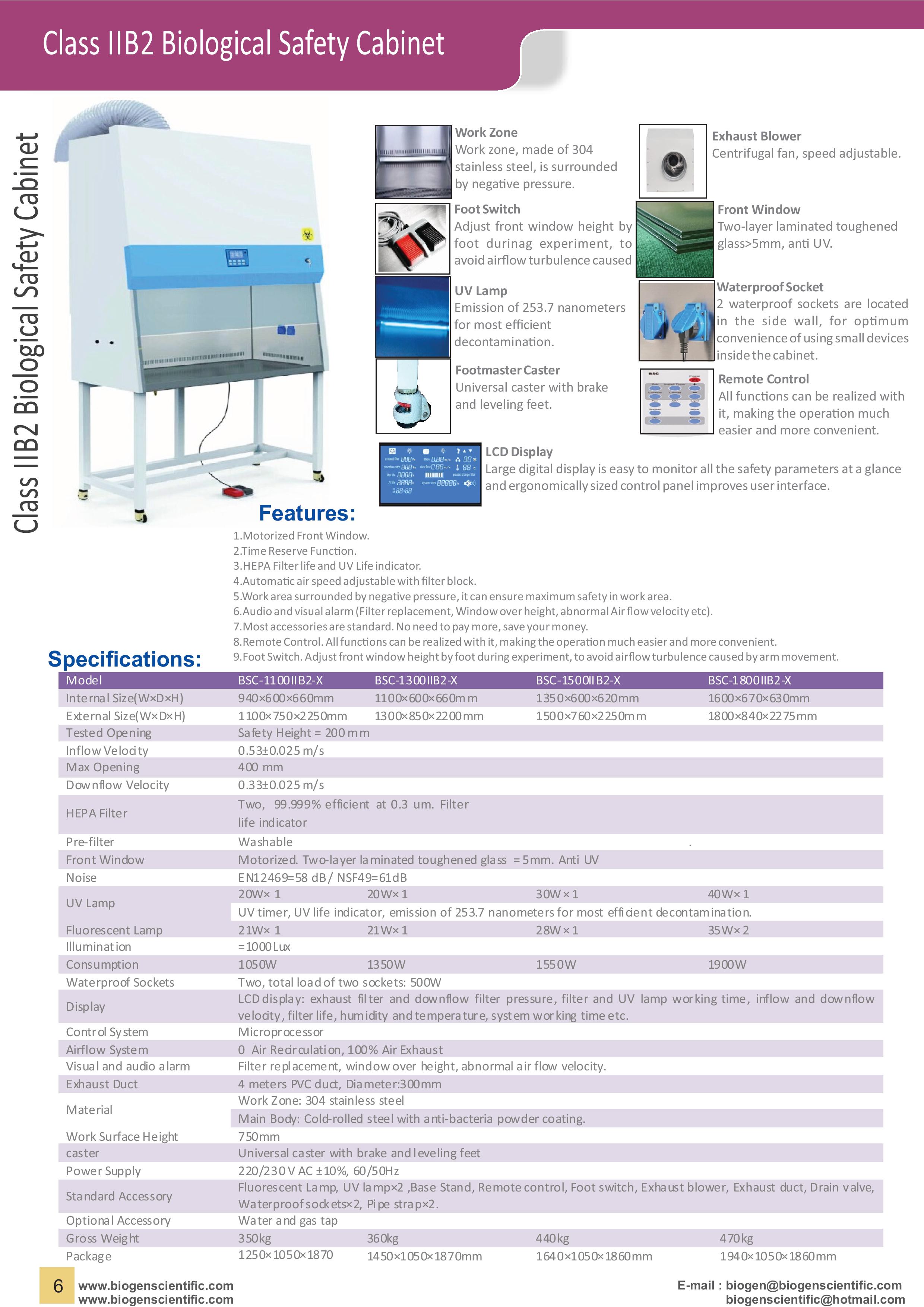

Technical Specification
Construction a. Outer is made of galvanized steel duly painted / stainless steel. b. Working table top is stainless steel. |
Work surface Height of work surface is 750-810 (in mm). |
Velocity a. Inflow velocity is 0.55 m/s ± 0.25% (Approx.). b. Down flow velocity is 0.35 m/s ± 0.25% (Approx.). |
Air flow system a. 0 % re-circulation. b. 100% air exhaust. |
Filters HEPA filter with 99.997% efficiency 0.3µm (with filter life indicator manometer) |
Illumination/ UV lamp 800 - 1000 LUX through Fluorescent Tube Light/30W 254nm. |
Gas & Vacuum Port Provide Gas & Vacuum Port for Supply. |
Noise Less than 60 db. |
Control Provided Separate Switch for UV Light, FT Light, Blower. |
Front Window / Side Window / Motorized (Optional) Front window thick Transparent Glass / Acrylic. |
Power supply Provided Two No’s electrical socket works on AC 220V ± 10%, 50/60Hz. |
Working table size (ft.) 3 x 2 x 2, 4 x 2 x 2, 6 x 2 x 2 |
Optional accessories Microprocessor based digital display controller, motorized front window. |
