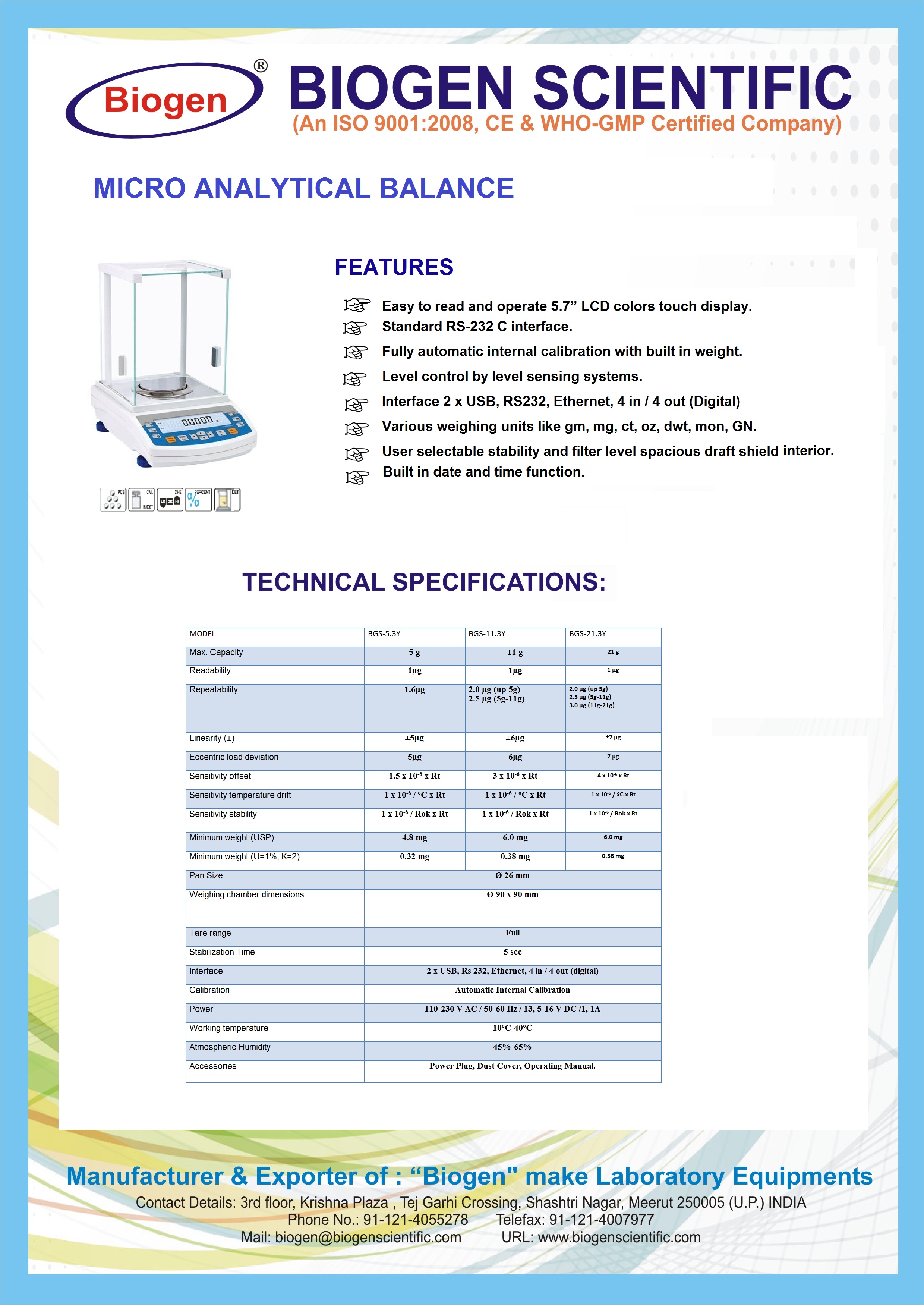

Technical Specification
| FEATURES: Standard RS-232 C interface. Fully automatic internal calibration with built in weight. Level control by level sensing systems. Interface 2 x USB, RS232, Ethernet, 4 in / 4 out (Digital) Various weighing units like gm, mg, ct, oz, dwt, mon, GN. User selectable stability and filter level spacious draft shield interior. Built in date and time function. |
| Max. Capacity: 21 g. Readability: 1µg. Repeatability: 2.0 µg(up 5g), 2.5 µg(5g-11g), 3.0 µg(11g-21g). |
| Linearity (±): 7 µg. Eccentric load deviation: 7 µg. |
| Sensitivity offset: 4 x 10-6 x Rt. Sensitivity temperature drift: 1 x 10-6 / ºC x Rt. Sensitivity stability: 1 x 10-6 / Rok x Rt. |
| Minimum weight (USP): 6.0 mg. Minimum weight (U=1%, K=2): 0.38 mg. |
| Pan Size: ø 26 mm. Weighing chamber dimensions: ø 90 x 90 mm Tare range: Full. Stabilization Time: 5 Sec. |
| Interface: 2 x USB, RS 232, Ethernet, 4 in / 4 out (digital) |
| Calibration: Automatic internal Calibration |
| Power: 110-230 V AC/50-60 Hz / 13.5-16 V DC / 1.1 A |
| Easy to read and operate 5.7” LCD colors touch display. |
| Working temperature: 10-40 ºC |
| Atmospheric Humidity: 45%-65% |
| Accessories: Power Plug, Dust Cover, Operating Manual. |
