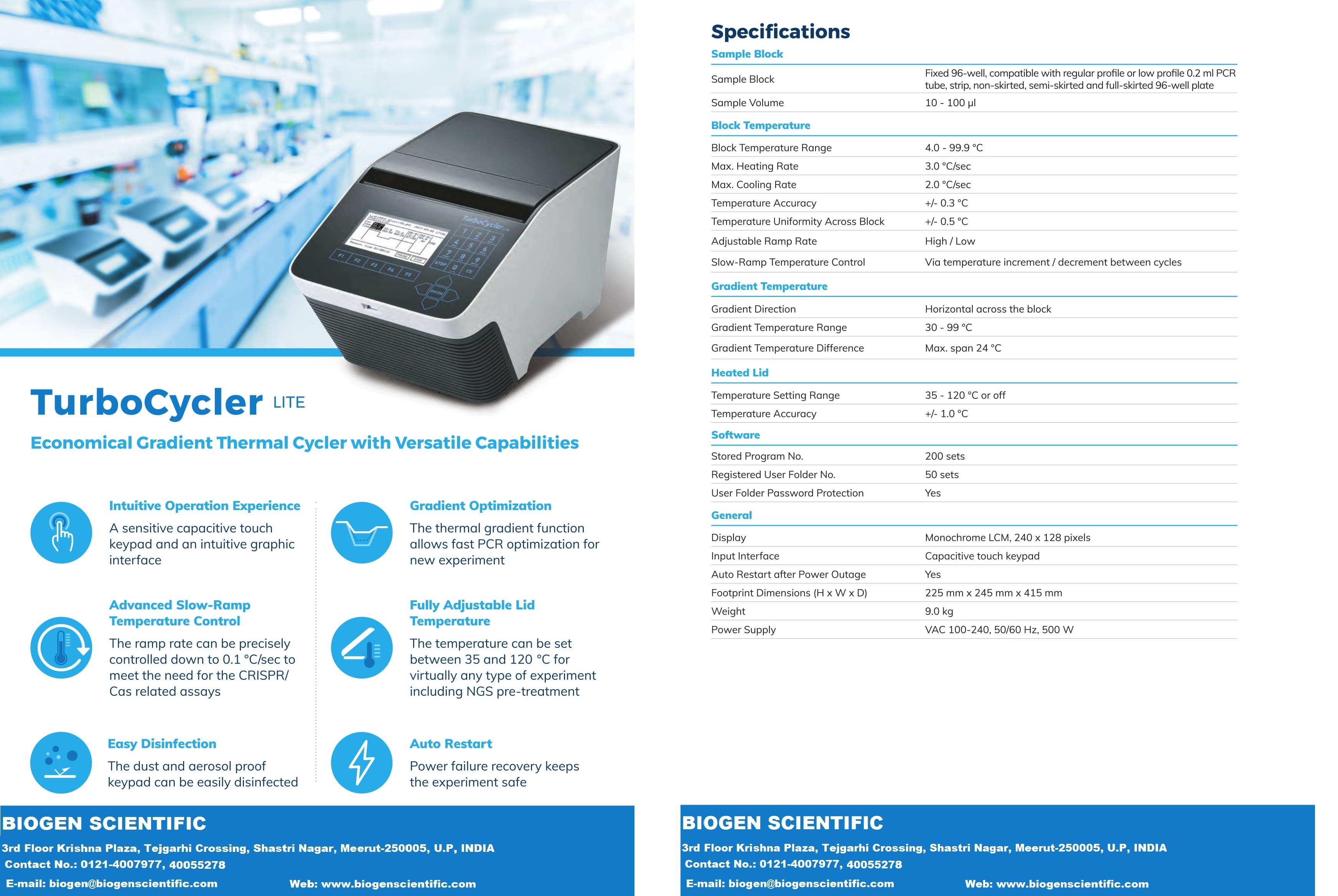

Technical Specification
| Sample Block Sample Block: Fixed 96-well, compatible with regular profile or low profile 0.2 ml PCR tube, strip, non-skirted, semi-skirted and full-skirted 96-well plate Sample Volume: 10 - 100 pl |
| Block Temperature Range: 4.0 - 99.9 °C |
| Max. Heating Rate 3.0 °C/sec Max. Cooling Rate 2.0 °C/sec Temperature Accuracy +/- 0.3 °C |
| Temperature Uniformity Across Block +/- 0.5 °C |
| Adjustable Ramp Rate High / Low Slow-Ramp Temperature Control: Via temperature increment / decrement between cycles |
| Gradient Direction: Horizontal across the block Gradient Temperature Range: 30 -99°C Gradient Temperature Difference: Max. span 24 °C |
| Heated Lid Temperature Setting Range: 35 - 120 °C or off |
| Temperature Accuracy: +/- 1.0 °C |
| Software Stored Program No. 200 sets Registered User Folder No. 50 sets User Folder Password Protection Yes |
| Display: Monochrome LCM, 240 x 128 pixels Input Interface Capacitive touch keypad |
| Auto Restart after Power Outage: Yes |
| Footprint Dimensions (H x W x D) 225 mm x 245 mm x 415 mm Weight 9.0 kg |
| Power Supply VAC 100-240, 50/60 Hz, 500 W |
