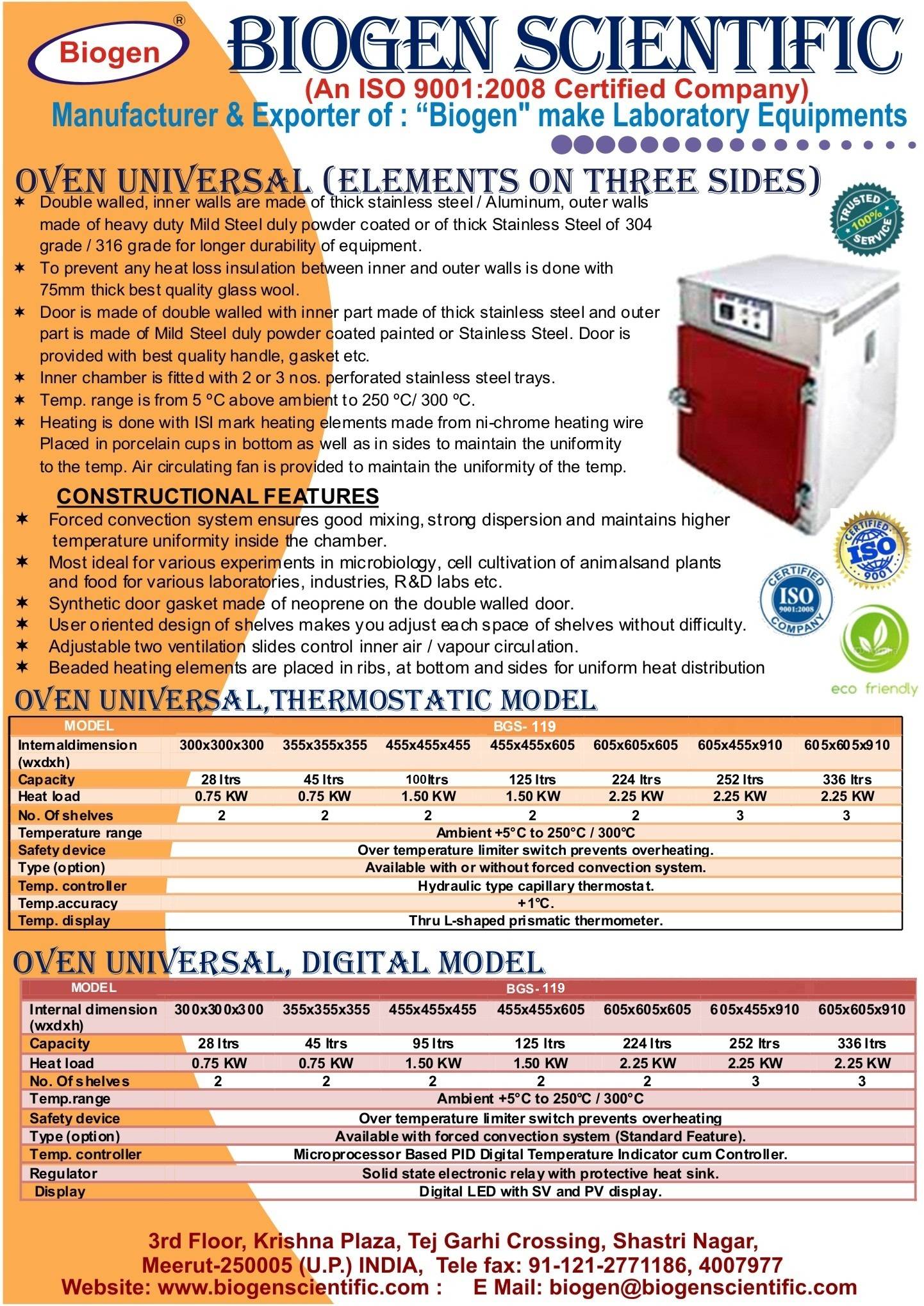

Hot Air Oven, Cat. No: BGS-119

Technical Specification

Double walled, inner walls made of thick stainless steel 304, outer walls made of heavy duty mild steel duly powder coated in off white color for longer durability of equipment.
To prevent any heat loss insulation between inner and outer wall is done with 75 mm thick best quality ceramic wool.
Door is made of double walled with inner part made of thick stainless steel and outer part is made of mild steel duly powder coated painted. Door is provided with best quality handle, gasket etc.
Inner chamber is provided with 2/3 nos. removable perforated (wire mesh) stainless steel trays.
Temp. Range is from ambient to 250°C, ± 0.5°C and is controlled by PID digital temperature indicator cum controller with PT-100 senor.
Heating is done with ISI mark heating elements made from Nichrome heating wire placed in porcelain cups in bottom as well as in sides (Total Three Side) to maintain the uniformity to the temp.
Air circulating fan is provided with cooled blower with power 0.5 H.P for forced air circulation to maintain the uniformity of the temp. Throughout the chamber.
LED / LCD display readable to time and temperature.
Power supply 220V, 50 Hz. Single phases.
Supply with suitable length of power cord.
Capacity (L): 45, 95, 125, 225, 250, 340 (Approx.)
Standard Accessories: User Manual, power cord.
Optional Accessories: 1. Microprocessor based PID controller with data logging system. 2. Data Logger, 8 channel 1000 points memory with hi-low alarm & printer interface. 3. PLC based temperature controller with touch screen display of time date and temperature, facility of attachment of Pen drive 4. digital timer 0-99 min.
