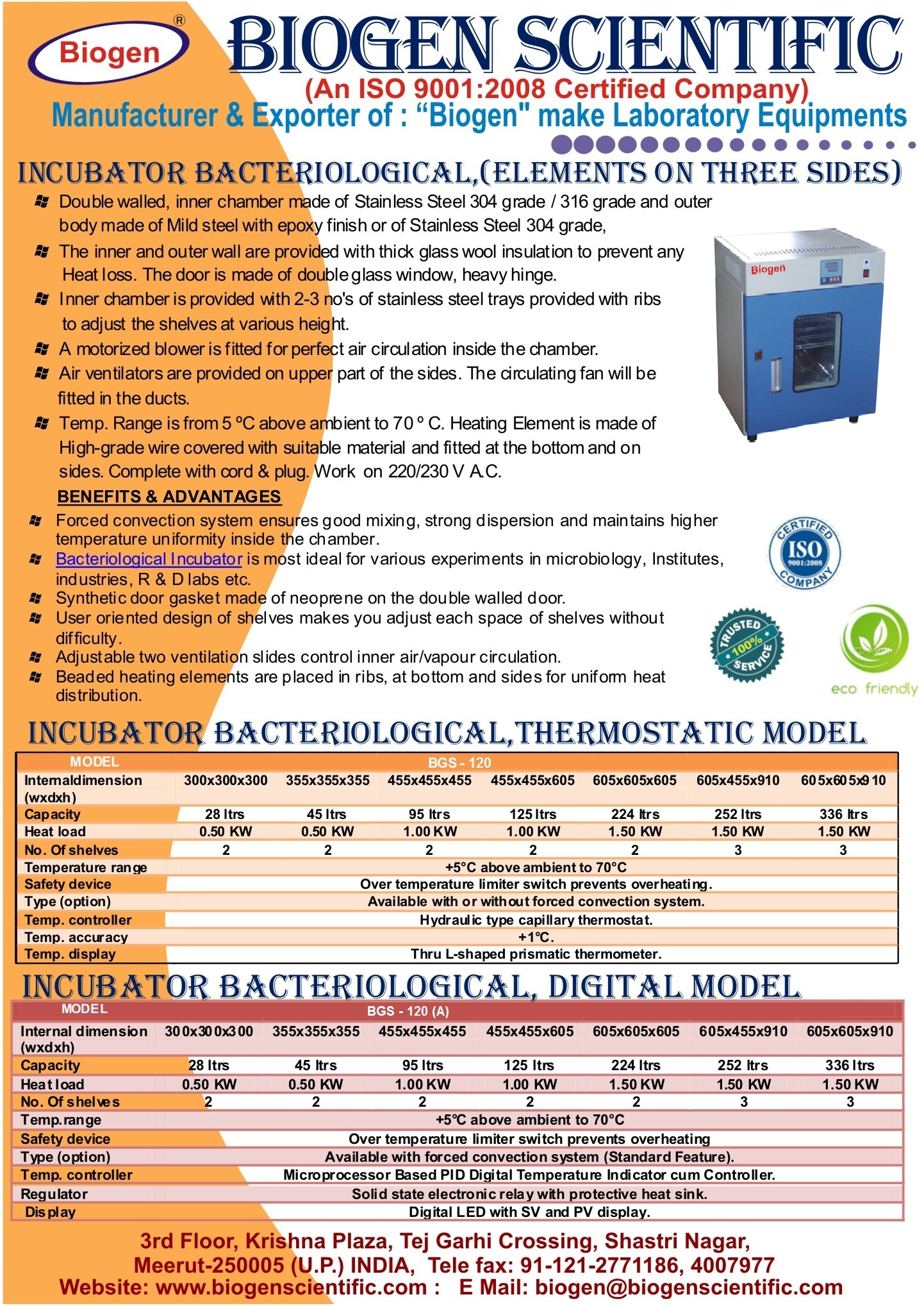

Technical Specification
Outer Wall: Made of electro galvanized steel powder coated. |
Inner Chamber: Made of SS 304 Grade. |
Door: Properly Insulated Door with Viewing Window . |
Insulation: 75mm Glass Wool between Outer & Inner Wall. |
Temperature Range: Above Ambient + 5 °C to 70°C. |
Display: LED (Temp). |
Temperature Controller: Microprocessor Based PID Controller. |
Shelves: 2/3 No. |
Power Requirement: 220/240 VAC Single Phase. |
Air circulation: Air circulating fan is provided to maintain the uniformity of the temp. through out the chamber. |
Inner Chamber Dimension (W x D x H): 355 x 355 x 355 mm (14”x14”x14”), 455 x 455 x 455 mm (18”x18”x18”), 455 x 455 x 605 mm (18”x18”x24”), 605 x 605 x 605 mm (24”x24”x24”), 600 x 450 x 910 mm (24”x18”x36”), 600 x 600 x 910 mm (24”x24”x36”). |
Optional Accessories: Digital Time |
Certificates: CE, GMP & ISO. |
