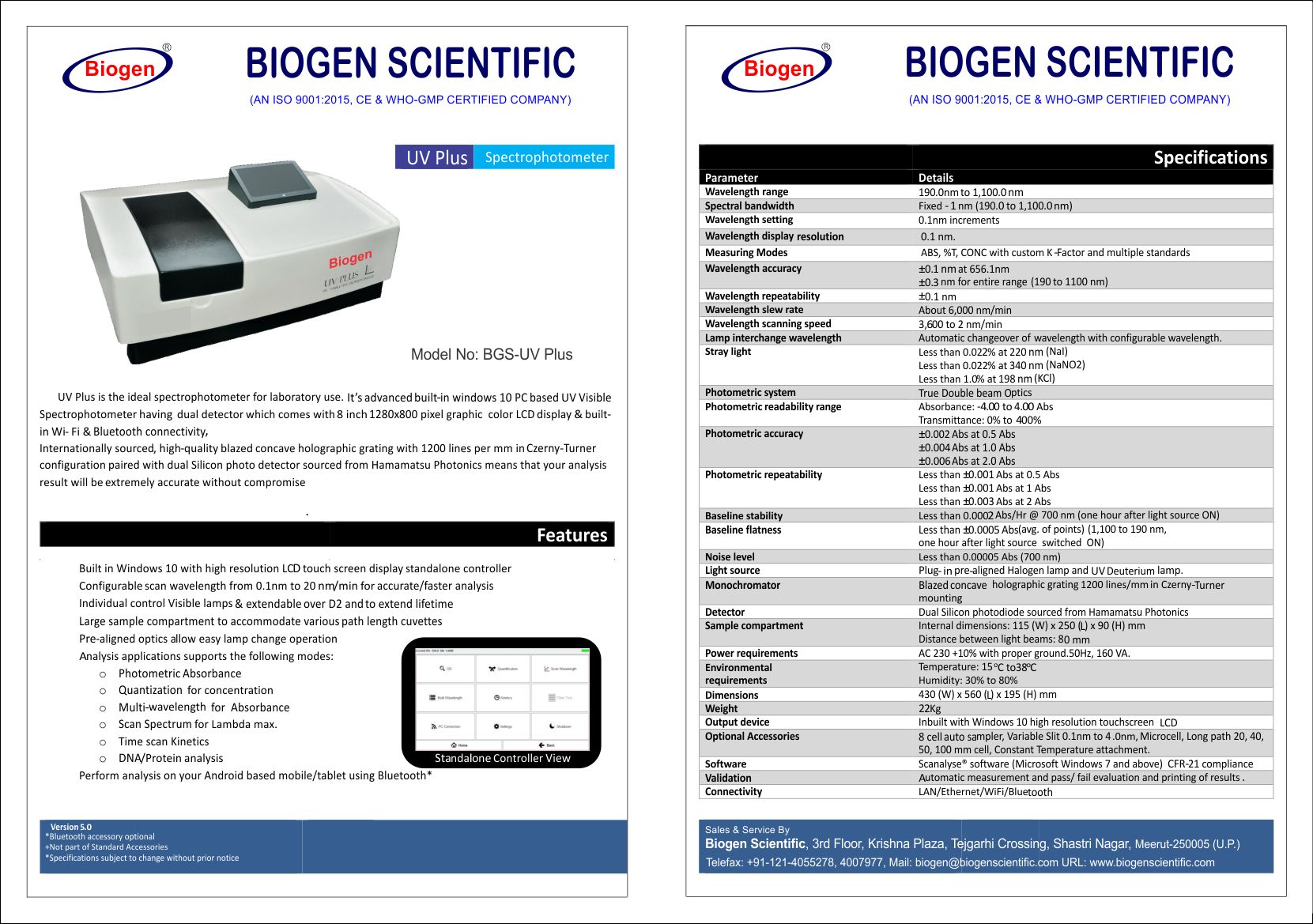

Technical Specification
Wavelength range 190.0nm to 1,100.0 nm |
Spectral bandwidth Fixed - 1 nm |
Measuring Modes ABS, %T, CONC with custom K -Factor and multiple standards |
Wavelength scanning speed 3,600 to 2 nm/min |
Photometric system True Double beam Optics |
Photometric readability range Absorbance: -4.00 to 4.00 Abs |
Photometric accuracy ±0.002 Abs at 0.5 Abs ±0.004 Abs at 1.0 Abs ±0.006 Abs at 2.0 Abs |
Baseline stability Less than 0.0002 Abs/Hr @ 700 nm (one hour after light source ON) |
Noise level Less than 0.00005 Abs (700 nm) |
Light source Plug- in pre-aligned Halogen lamp and UV Deuterium lamp |
Detector Dual Silicon photodiode sourced from Hamamatsu Photonics |
Output device Inbuilt with Windows 10 high resolution touchscreen LCD |
Optional Accessories 8 cell auto sampler, Variable Slit 0.1nm to 4 .0nm, Microcell, Long path 20, 40, 50, 100 mm cell, Constant Temperature attachment. |
