Technical Specification

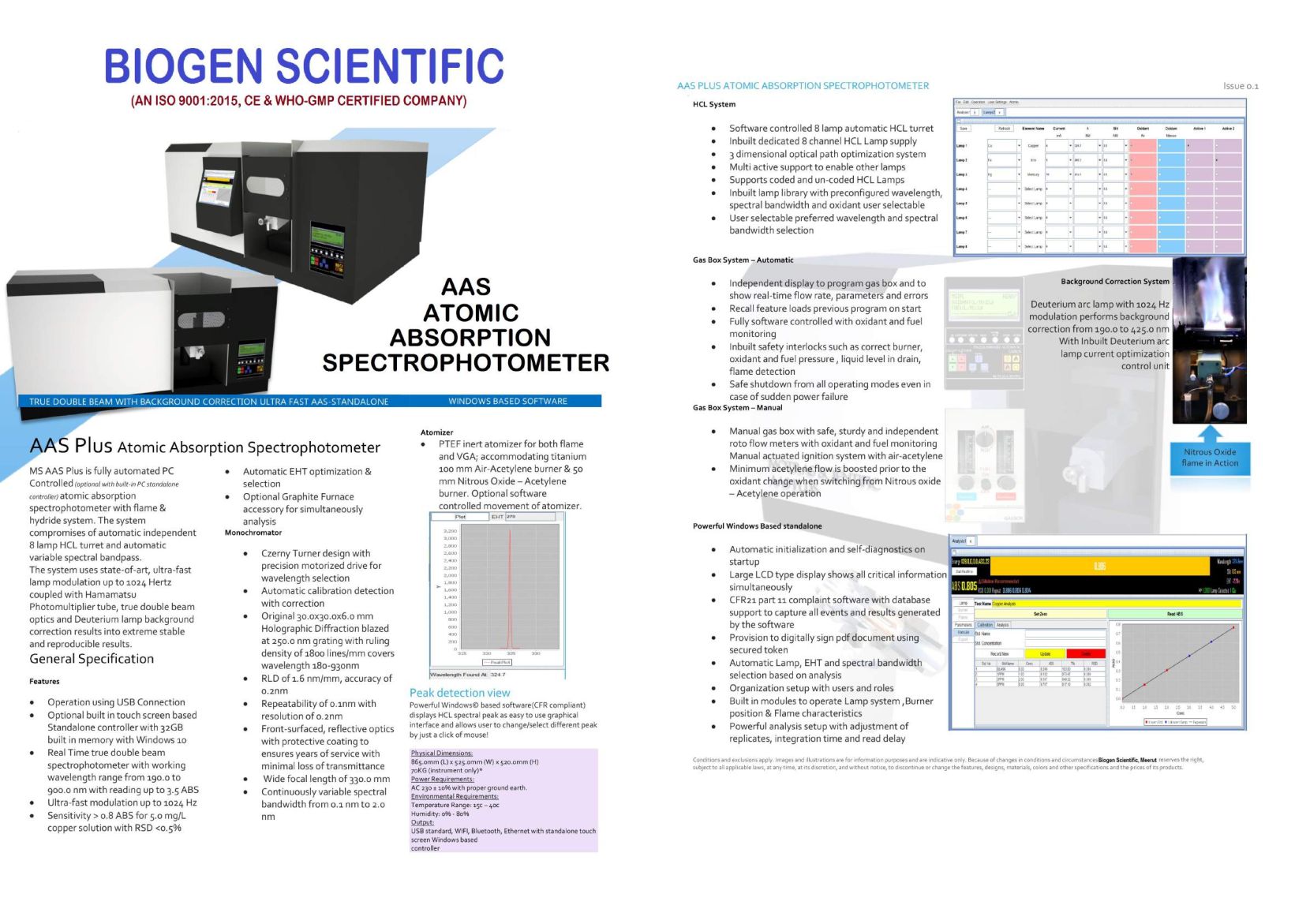

Computer Controlled True Double Beam Atomic Absorption Spectrophotometer with computer analysis software |
Eight Lamp automatic turrets with independent eight power supplies with coded lamp compatible |
Independent regulated power supplies for automatic next lamp warm-up |
Lamp current setting through keyboard |
Holographic grating of high density of not less than 1800 lines/mm |
Burner movement manually |
High resolution Ebert type Monochromator, sine-bar drive with 330mm focal length and dual blaze grating operates over the wavelength Range 190-930 nm. Wavelength accuracy: ± 0.5nm, dector wide range photomultiplier tube |
Automatic gain control (EHT) for fast peak detection alignment and display |
User friendly windows based software |
Monitors the ON-OFF status for hollow cathode lamps and grating movement |
Gas System With Automatic Flame Changeover, Full Safety Interlock Including Pressure Sensors on Line, Power Failure Protection, Burner Interlock And Flame Sensor, Flame Ignition Shall Be Automatic |
Electronics: High Gain, low noise amplifier, plug in interchangeable printed circuit board. High voltage, H.C. lamp current etc. controlled by high speed digital commands |
Software: Complete software of instrument operation and data treatment, peak search for spectral line, windows driven commends |
