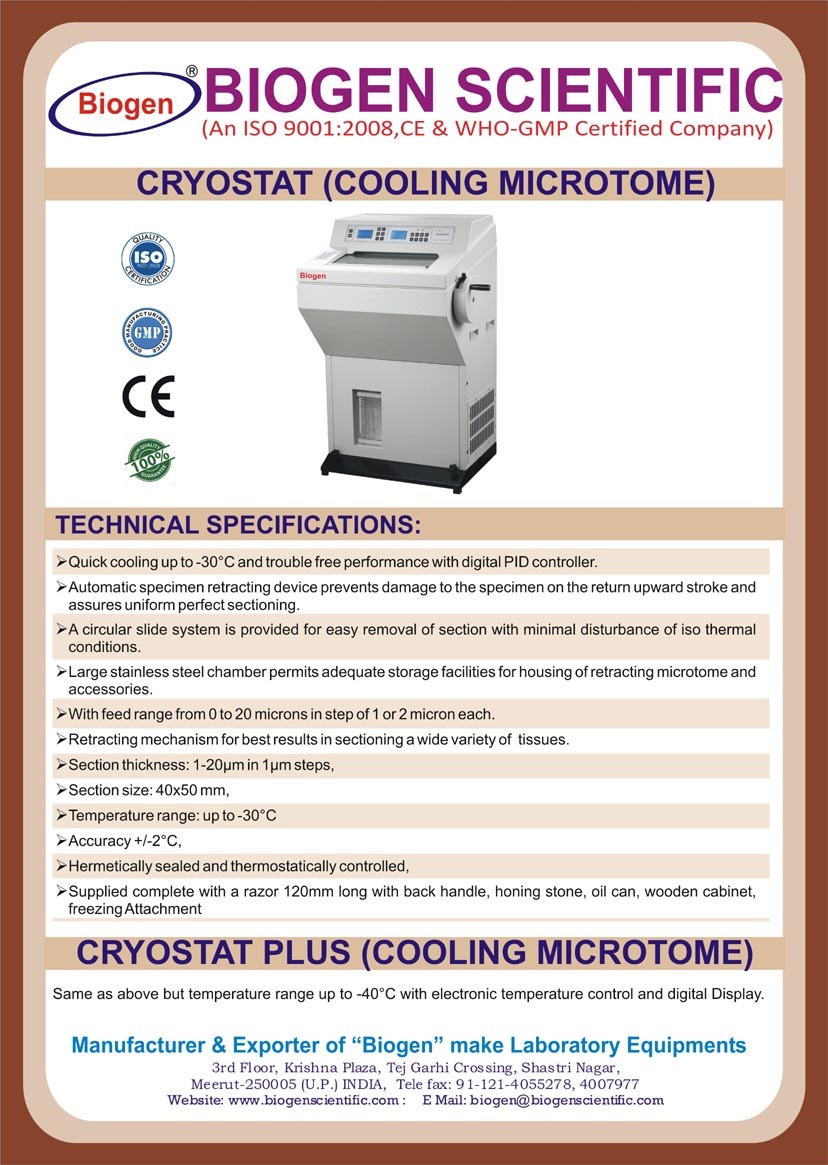

Technical Specification
Quick cooling up to -30ºC and trouble free performance with digital PID controller. |
Automatic specimen retracting device prevents damage to the specimen on the return upward stroke and assures uniform perfect sectioning. |
A circular slide system is provided for easy removal of section with minimal disturbance of ISO thermal conditions. |
Large stainless steel chamber permits adequate storage facilities for housing of retracting microtome and accessories. |
With feed range from 0 to 20 microns in step of 1 or 2 micron each. |
Retracting mechanism for best results in sectioning a wide variety of tissues. |
Section Thickness Range: 1 – 60 µm |
Maximum Specimen Size: 35 x 23 mm |
Horizontal Specimen feed: 22mm Vertical Specimen feed: 55mm |
Temperature range up to -50ºC with electric control and digital display |
Accuracy ±2ºC, Hermetically sealed and thermostatically controlled, |
Supplied complete with a razor 120mm long with back handle, honing stone, oil can, wooden cabinet, freezing attachment |
Dimensions (WxDxH): 660 x 640 x 1130 mm |
