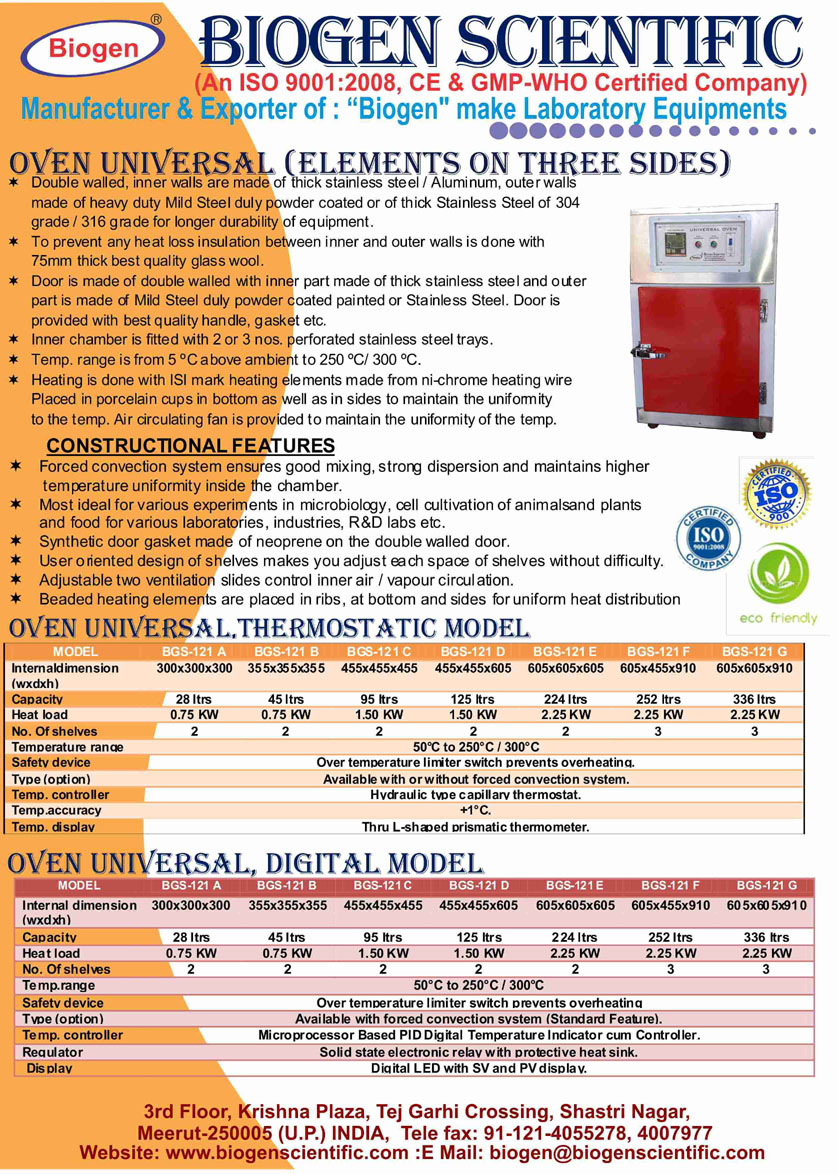

Technical Specification
| Outer Wall: Made of Electro Galvanized Steel Powder Coated |
| Inner Chamber: Made of SS 304 Grade |
| Door: Properly Insulated Door |
| Insulation : 75mm Glass Wool between Outer & Inner Wall |
| Temperature Range : Above Ambient + 5 °C to 250/300 °C |
| Display : LED (Temp) |
| Heating : Heating By ISI Mark Heating Elements |
| Temperature Controller : Microprocessor Based PID Controller |
| Shelves : 2/3 No.s |
| Power Requirement : 220/240 VAC Single Phase |
| Air circulation : Air circulating fan is provided to maintain the uniformity of the temp. through out the chamber. |
| Inner Chamber Dimension (W x D x H) 355 x 355 x 355 mm (14”x14”x14”) 455 x 455 x 455 mm (18”x18”x18”) 455 x 455 x 605 mm (18”x18”x24”) 605 x 605 x 605 mm (24”x24”x24”) 600 x 450 x 910 mm (24”x18”x36”) 600 x 600 x 910 mm (24”x24”x36”) |
| Optional Accessories: Digital Timer for above |
