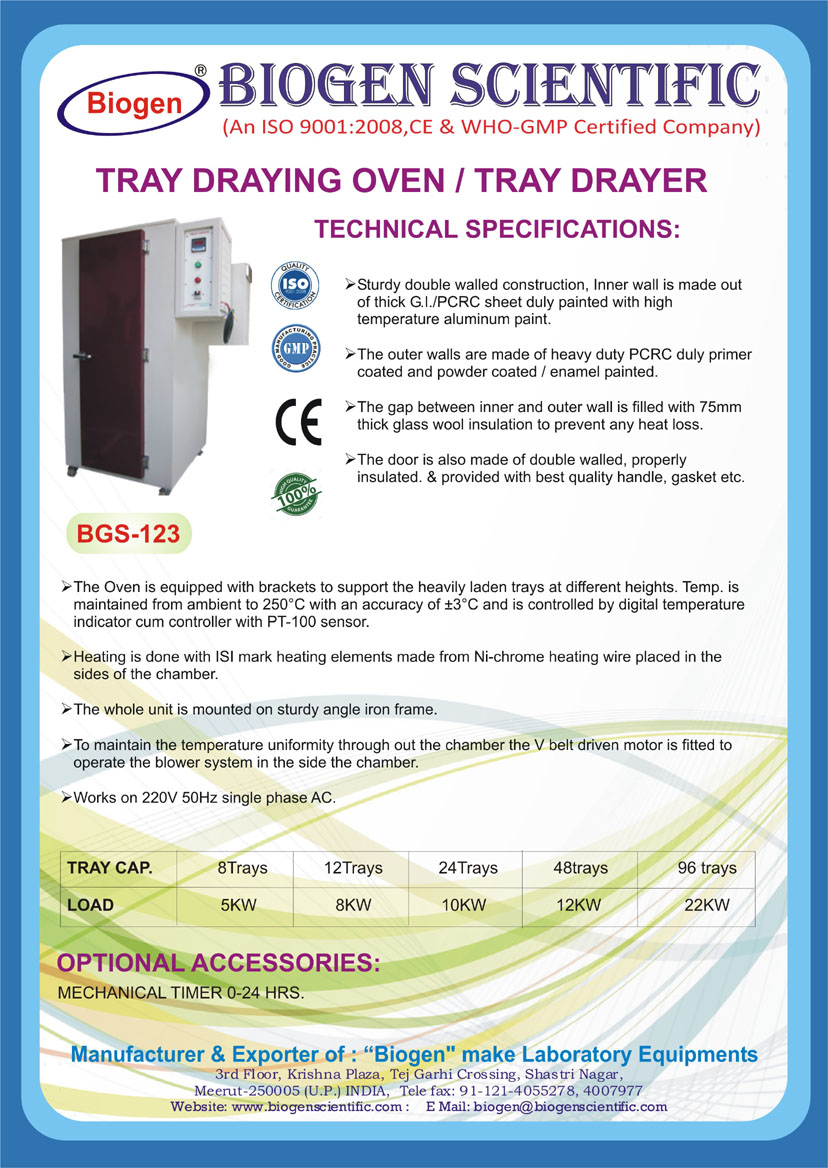

Technical Specification
| OUTER BODY: The outer walls are made of heavy duty PCRC duly primer coated and powder coated |
| INNER BODY: Inner wall is made out of thick G.I./ PCRC sheet duly painted with high temperature aluminum paint. |
| INSULATION: The gap between inner and outer wall is filled with 75mm thick glass wool insulation to prevent any heat loss. |
| DOOR: The door is also made of double walled, properly insulated. & provided with best quality handle. |
| TEMPERATURE RANGE: Ambient to 250 ºC./ 300 ºC |
| ACCURACY: ± 3°C. |
| CONTROLLER: Digital Temperature Indicator Cum Controller with PT-100 sensor. |
| WIRED: Ni-chrome heating wire |
| FRAME: The whole unit is mounted on sturdy angle iron frame. |
| POWER SUPPLY: Works on 220V 50Hz single phase AC. |
| TRAY CAP: 8 Trays, 12 Trays, 24 Trays, 48 Trays, 96 Trays or as per Requirement |
| LOAD: 5 KW to 22 KW. |
| OPTIONAL ACCESSORIES: Timer 0-24 hrs. |
