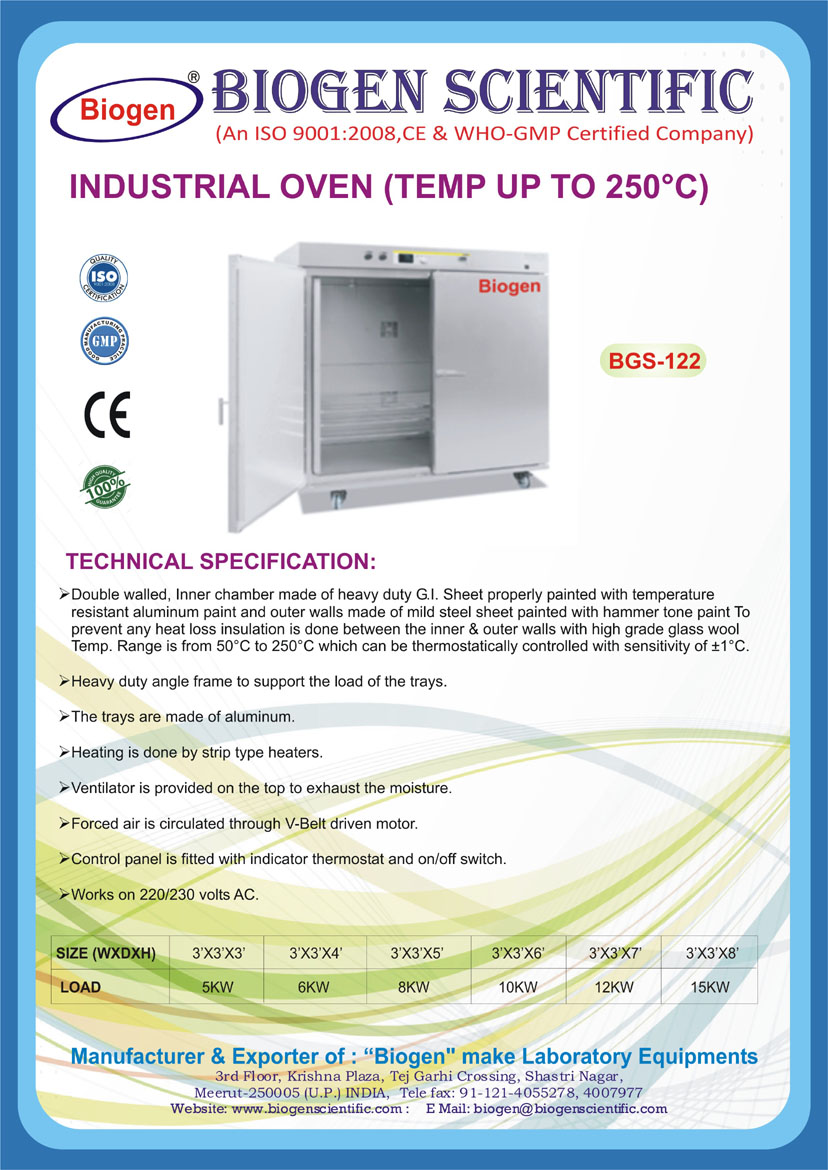

Technical Specification
| MODEL: Double Walled. |
| OUTER BODY: Outer walls made of mild steel sheet painted with hammer tone paint to prevent any heat loss. |
| INNER BODY: Inner chamber made of heavy duty G.I. Sheet properly painted with temperature resistant Aluminum paint. |
| INSULLATION: Insulation is done between the inner & outer walls with high grade glass wool. |
| TRAY: The trays are made of aluminum. |
| TEMP. RANGE: 50 ºC to 250 ºC. |
| CONTROLLER: Digital Temperature Indicator Cum Controller with PT-100 sensor |
| SENSITIVITY: ± 1 °C. |
| HEATING: Heating is done by strip type heaters. |
| VENTILATOR: Ventilator is provided on the top to exhaust the moisture. |
| POWER SUPPLY: Works on 220/230 volts AC. |
| SIZE (W x D x H): 3 x 3 x 3, 3 x 3 x 4 ,3 x 3 x 5 , 3 x 3 x 6 , 3 x 3 x 7 , 3 x 3 x 8, |
| LOAD: 5 KW to 15 KW. |
