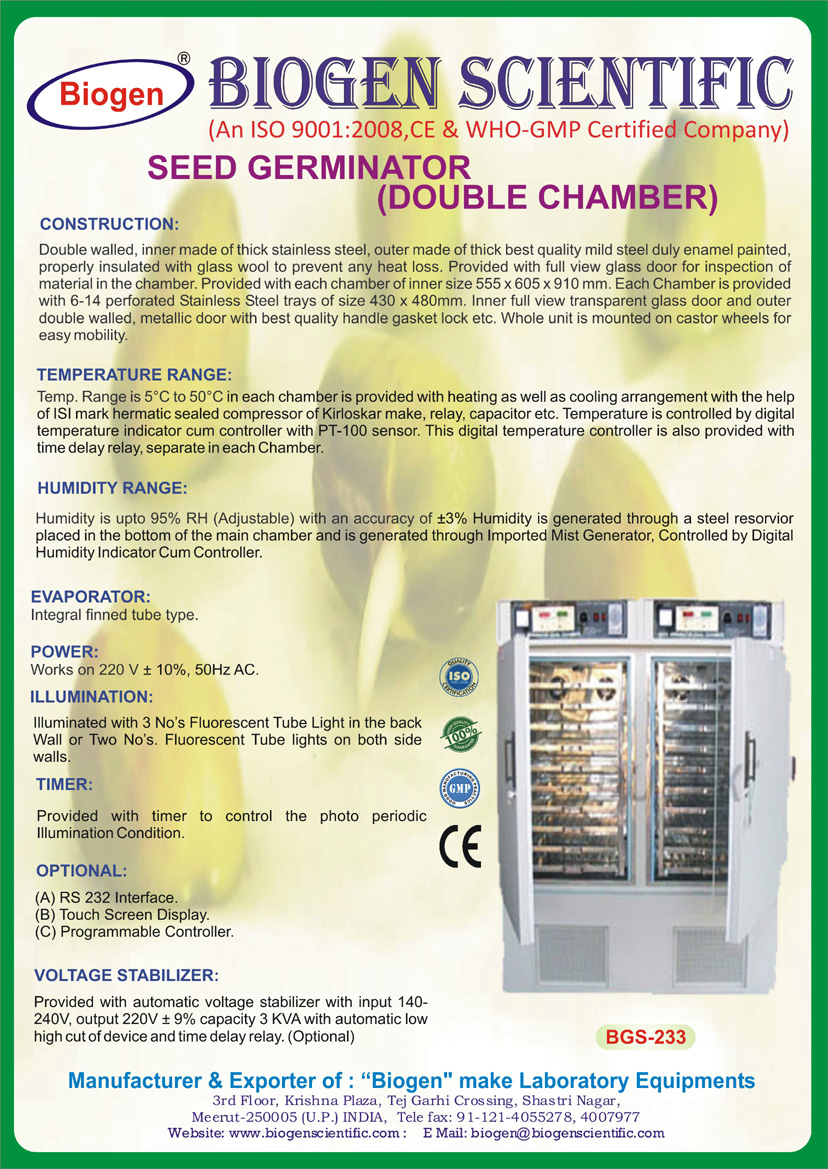

SEED GERMINATOR (DOUBLE CHAMBER) (CAT NO. BGS-233)

Technical Specification

OUTER WALL: Outer walls are made of thick best quality electro galvanized steel powder coated.
INNER CHAMBER: Inner walls made of thick stainless steel 304 grade.
INSULLATION: To prevent any heat loss gap between inner and outer wall are filled with 75mm thick glass wool insulation.
TRAY SIZE: 430 x 480mm.
TEMP. RANGE: 5 ºC to 50 ºC
HUMIDITY: Ambient to 95% RH (Adjustable).
ACCURACY: ± 3%.
EVAPORATOR: Integral Finned Tube Type.
POWER: Works on 220V ± 10%, 50 Hz AC.
ILLUMINATION: Illuminated with 3 No Fluorescent Tubes Light in the Back Wall or Two No Fluorescent Tube Lights On Both Side Walls.
TIMER: Provided with timer to control the photo periodic illumination condition.
CAPACITY: 300 Liters. Inner chamber Dimension 910 X 555 X 600 mm.
OPTIONAL ACCESSORIES: RS232 Interface, Controller with Touch Screen Display, Programmable Controller, Voltage Stabilizer Capacity 3 KVA with automatic low high cut of device and time delay relay.
