Technical Specification
Closed body table top model Rotary shaker used for continuous shaking in flask, Mild Steel body, |
Fitted with variable speed regulator to control speed from 50 to 250 rpm Stainless steel platform of size 18” X 18”. |
Provided with stainless steel lotus type clamps to hold the 9 flasks of 500ml or 16 flasks of 250 ml. or 25 flasks of 150 ml. or 36 flasks of 100/50 ml. DC motor |
OPTIONAL: (A) Spare lotus clamps up to 100 ml/250ml/500ml. (B) Digital RPM +Timer. (C) Timer |

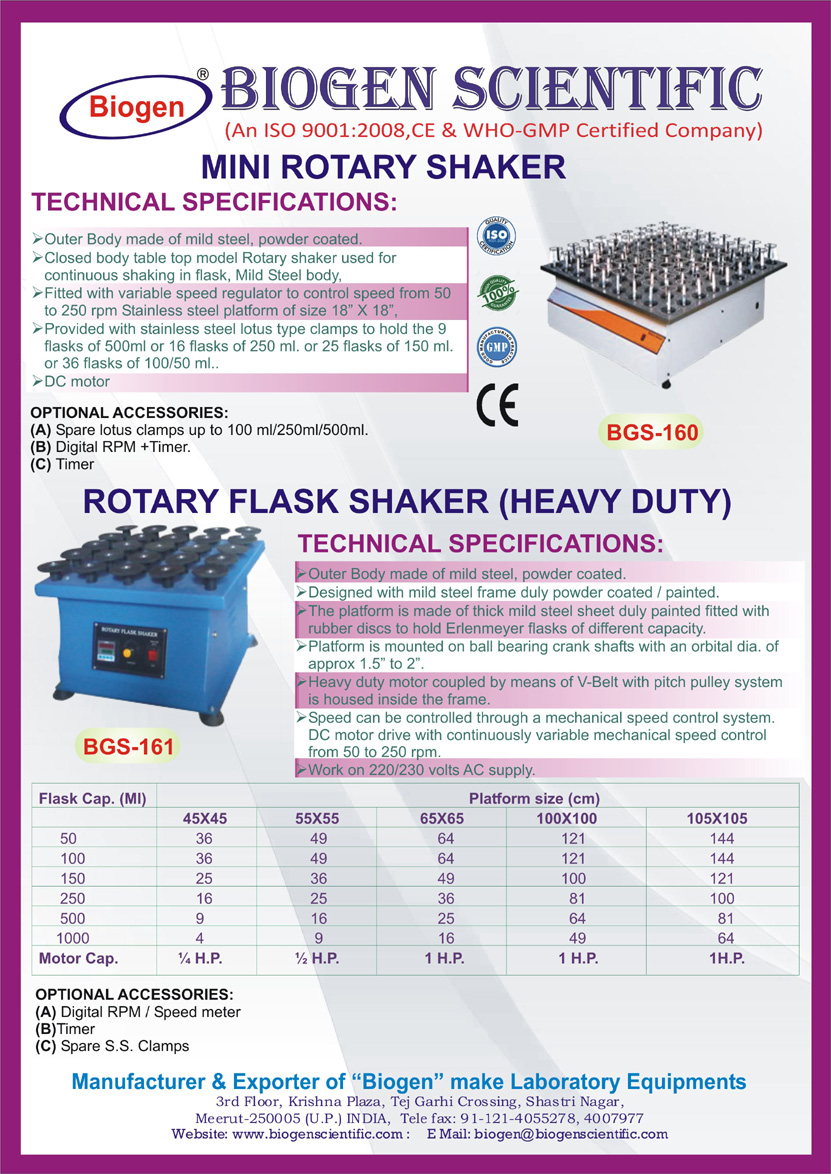

ROTARY FLASK SHAKER (HEAVY DUTY) (CAT NO BGS-161) |
Designed with mild steel frame duly powder coated / painted. |
The platform is made of thick mild steel sheet duly painted fitted with rubber discs to hold Erlenmeyer flasks of different capacity. |
Platform is mounted on ball bearing crank shafts with an orbital dia. of approx 1.5” to 2”. |
Heavy duty motor coupled by means of V-Belt with pitch pulley system is housed inside the frame. |
Speed can be controlled through a mechanical speed control system. |
DC motor drive with continuously variable mechanical speed control from 50 to 250 rpm. |
POWER: Work on 220/230 volts AC supply. |
OPTIONAL ACCESSORIES: (A) Digital RPM / Speed meter (B)Timer (C) Spare S.S. Clamps |
